The DV+ options for VW and Audi models!

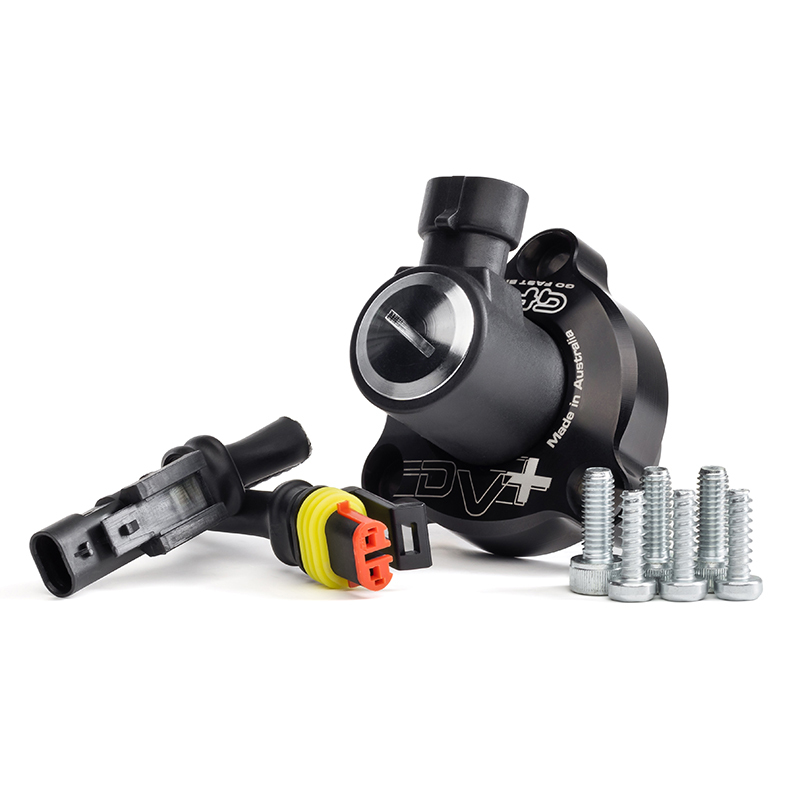

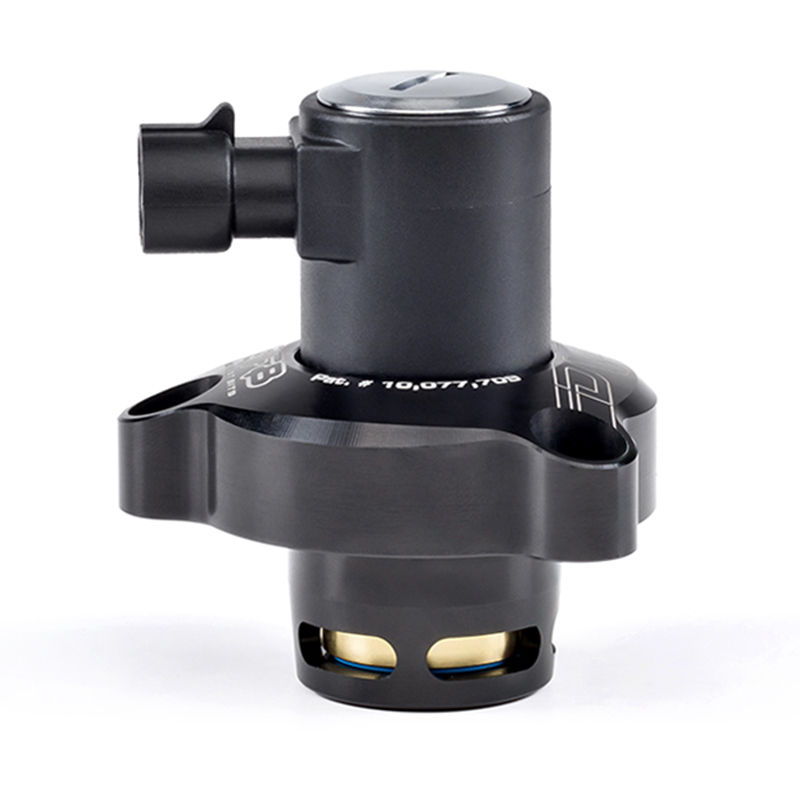

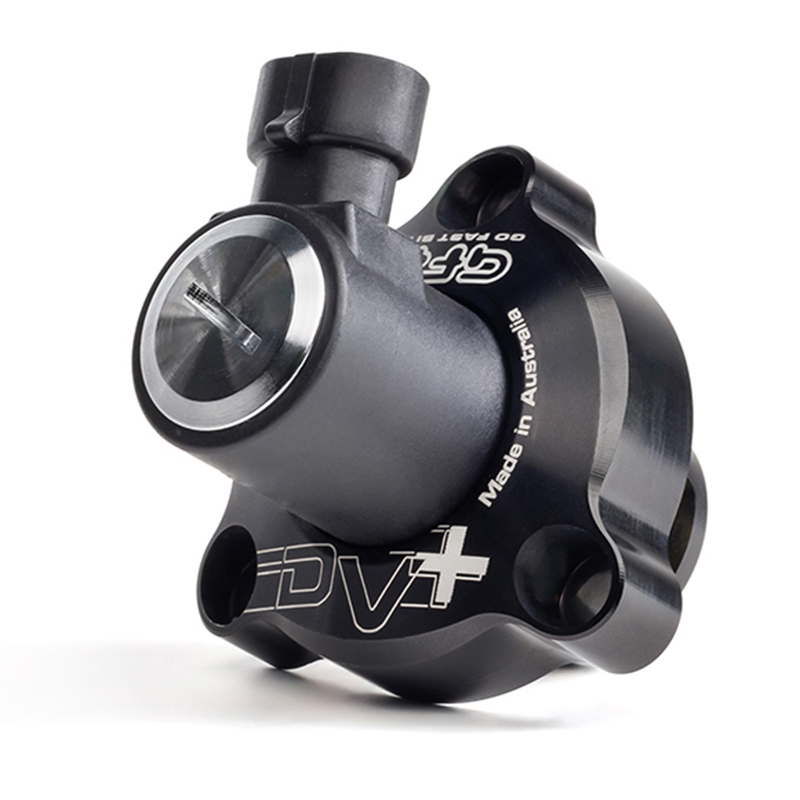

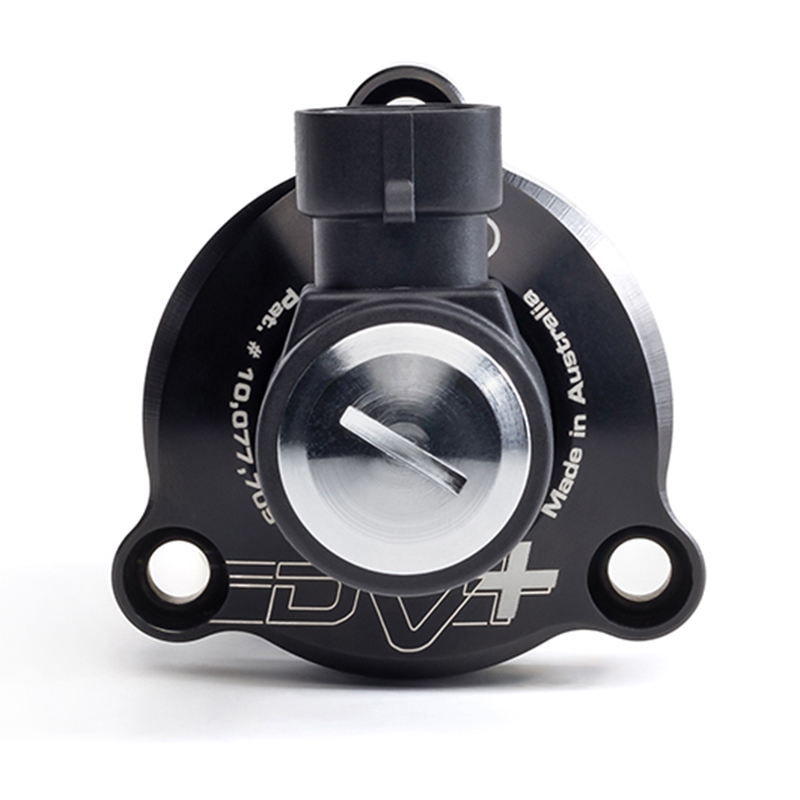

The T9380 is the latest addition to the DV+ range of diverter valves from GFB (Go Fast Bits). It is specifically designed as a complete replacement for the newer generation of OEM diverter valves found in late-model VW and Audi vehicles.
Unlike the earlier generation diverter valves, the newer generation valves cannot be disassembled and integrated into a DV+. Therefore, GFB developed the T9380 with a low-profile integrated solenoid as a complete replacement for the newer generation valves, enabling a hassle-free installation with no clearance issues.
Like all valves in the DV+ range, the new T9380 delivers the following benefits over the OEM diverter valve:
T9380 DV+
Improved boost holding (see next page for more details)
Sharper throttle response
Faster boost recovery after a gearshift or brief throttle lift
Unrivalled longevity, backed by our Lifetime Warranty
Improved Boost Holding
Since electronic OEM diverter valves first appeared in the mid-2000s, there have been many revisions over the years in an attempt to address reliability issues. Whilst the latest generation of OEM diverter valves have become more reliable, there is always a performance trade-off due to their operational method and plastic construction.
When GFB engineers performed boost leak testing on the OEM diverter valve in a VW Mk8 Golf R, they found the leak was significantly larger than in earlier generations.
This excessive leaking is due to the emerging trend of manufacturers mounting diverter valves remotely on plastic piping rather than directly on the turbocharger. A plastic valve mechanism closing onto a plastic seat resulted in the largest OEM diverter valve leak we’ve seen yet at 28L/min at 1 Bar of boost.

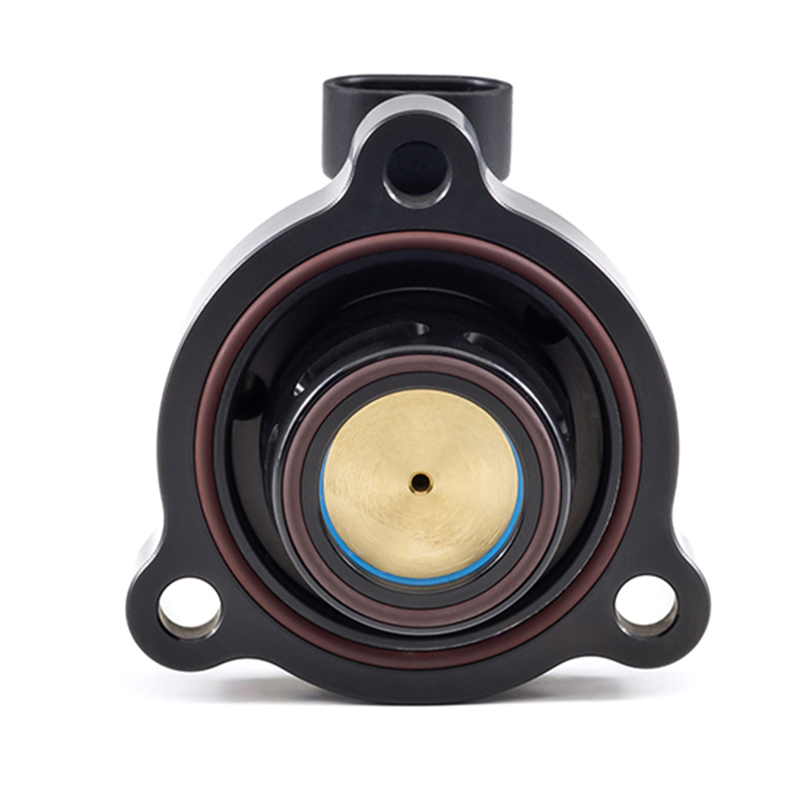

Even with the Viton face seal (featured on all DV+ pistons), the plastic OEM seat face was found to be so uneven that it was impossible to achieve a reliable seal. The T9380 successfully addresses this issue by incorporating an integral piston seat machined into its body. This design ensures a proper seal, even on uneven plastic OEM seats.
Sharper throttle response, faster boost recovery after brief throttle lift
Factory electronic diverter valves are binary in operation – they’re either open or shut. Your throttle, however, isn’t. When you make small throttle adjustments, the binary operation of the factory diverter results in abrupt changes in power delivery, which is the very definition of poor throttle response.
The DV+“pilot actuation” system allows the piston to open and close progressively, thereby smoothing the power delivery during throttle modulation, and ultimately improving throttle response.
Unrivalled longevity, backed by our Lifetime Warranty
The combination of precision manufacturing, attention to detail, and robust materials mean the DV+ will last a lifetime. So does the warranty!
About this range
When you just want performance
Vehicle Manufacturers Are Pushing Their Engines To The Limit. Get A DV To Match.
GFB’s DV+ diverter valve range offers a direct-fit performance solution for the weak factory diverter valves used on many modern vehicles.
PCT Patents Pending
By retaining the factory ECU control and recirculating the vented air, the DV+ is a purely performance-oriented product that offers the following benefits:
Sharper throttle response
Faster boost recovery on gearshift
Solves boost leaking issues
Built to last
DV+ T9380 Diverter Valve for VW and Audi applications also suits:
AUDI S4 B9 (2016-On) 3.0TFSI
AUDI S5 B9 3.0TFSI (2017-On)
AUDI A6 3.0TFSI MHEV C8 (2019-On)
AUDI S6 2.9TFSI (2020-On) (Two Valves Required)
AUDI A7 3.0TFSI (2017-On)
AUDI S7 2.9TFSI (2020-On) (Two Valves Required)
AUDI A8 3.0TFSI (2017-On)
AUDI SQ5 3.0TFSI (2017-On)
AUDI Q7 3.0TFSI (2021-On)
AUDI Q8 3.0TFSI (2018-On)
AUDI RS4 B9 2.9TFSI (2017-On) (Two Valves Needed)
AUDI RS5 B9 2.9TFSI (2018-On)
SKODA Octavia Mk4 2.0TSI (EA888 EVO4) 2020-On
VW Arteon 2.0 TSI EA888 EVO4 2021-On
VW Golf GTI Mk8 (EA888 EVO4)
VW Golf R Mk8 2.0TSI EA888 EVO4
VW T-Roc R (2019-On)
