Designed and manufactured to replace the clutch system installed as Original Equipment, a Heavy Duty replacement clutch kit features a torque capacity increase due to a higher clamp load (typically 20% increase compared with original equipment (OE). Each component has been thoroughly tested and developed for a specific application. This range provides a Quality Assured replacement part that will meet or exceed the requirements of the original unit. After 15 years of experience in developing and manufacturing clutch kits for Aftermarket use, PHC is the trusted source for a complete range of Clutch Kits suited to your vehicle. PRODUCT NOTES: PHC Heavy Duty Clutch Kits are manufactured with a (typical) 20% increase in clamp load, resulting in an equivalent increase in torque capacity. Increasing clamp load by more than 20% can put the vehicles hydraulic system under stress, significantly reduce clutch system life and result in very high clutch pedal actuation effort. Therefore if additional torque capacity is required, please consider a 4Terrain or Mantic clutch kit to suit your application. Beware of imitation products with clamp loads greater than 20% over OE specification. Heavy Duty clutch kits with a SSCC/SSC/SC suffix, feature upgrade cerametallic clutch plates. SSCC clutch plates feature dual sided cerametallic friction material, designed to further increase torque capacity, with a moderate reduction in pedal feel and more sudden engagement. SSC clutch plates feature dual sided cerametallic friction material with no segment cushioning, designed to further increase torque capacity, with a significant reduction in pedal feel and aggressive sudden engagement. SC clutch plates feature dual sided cerametallic friction material with no segment cushioning and a non-sprung hub, designed to further increase torque capacity, but offering very little pedal feel and ultra aggressive sudden engagement - not suitable for street use.
This kit includes : Heavy duty cover assembly with 20% (typical) increase in torque capacity / clamp load, Clutch plate, Release bearing
Features and Specifications
Heavy Duty Clutch Kit Suits OE Flywheel Typical 20% Increase in Torque Capacity
Dual Mass Flywheel: Not Included Flywheel Step:
Torque Capacity: Peak: 581Nm, Rated: 464Nm Solid Flywheel: Not Included
Concentric Slave Cylinder: Not Included Spigot: RSB590 Alignment Tool: CAT110
Fitment
Holden Belmont 1968-1969, 161ci, 161 HC Red Motor, 85kw HK, Non Synchro First, 1/68-4/69
Holden Belmont 1968-1969, 186ci, 186 Red Motor, 94wk HK, Non Synchro First, 1/68-4/69
Holden Belmont 1968-1969, 186ci, 186 S Red Motor, 108kw HK, Non Synchro First, 1/68-4/69
Holden Belmont 1968-1969, 161ci, 161 LC Red Motor, 81kw HK, Non Synchro First, 1/68-4/69
Holden Kingswood 1968-1969, 186ci, 186 Red Motor, 94kw HK, Non Synchro First, 1/68-4/69
Holden Kingswood 1968-1969, 186ci, 186 S Red Motor, 108kw HK, Non Synchro First, 1/68-4/69
Holden Kingswood 1968-1969, 161ci, 161 HC Red Motor, 85kw HK, Non Synchro First, 1/68-4/69
Holden Monaro 1968-1969, 161ci, 161 LC Red Motor, 81kw HK, Non Synchro First, 1/68-4/69
Holden Monaro 1968-1969, 186ci, 186 Red Motor, 94kw HK, Non Synchro First, 1/68-4/69
Holden Monaro 1968-1969, 186ci, 186 S Red Motor, 108kw HK, Non Synchro First, 1/68-4/69
Holden Premier 1963-1965, 179ci, 179 Red Motor, 86kw EH, 3 Speed, 8/63-1/65
Holden Premier 1965-1966, 179ci, 179 X2 Red Motor, 104kw HD, 3 Speed, 2/65-3/66
Holden Premier 1965-1966, 179ci, 179 Red Motor, 86kw HD, 3 Speed, 2/65-3/66
Holden Premier 1966-1967, 186ci, 186 X2 Red Motor, 108kw HR, 3 Speed, 4/66-5/67
Holden Premier 1967-1967, 186ci, 186 S Red Motor, 108kw HR, 3 Speed, 6/67-12/67
Holden Premier 1966-1967, 186ci, 186 Red Motor, 94kw HR, 3 Speed, 4/66-12/67
Holden Premier 1968-1969, 186ci, 186 S Red Motor, 108kw HK, Non Synchro First, 1/68-4/69
Holden Premier 1968-1969, 186ci, 186 Red Motor, 94kw HK, Non Synchro First, 1/68-4/69
Holden Special 1963-1965, 149ci, 149 HC Red Motor, 75kw EH, 3 Speed, 8/63-1/65
Holden Special 1963-1965, 149ci, 149 LC Red Motor, 71kw EH, 3 Speed, 8/63-1/65
Holden Special 1963-1965, 179ci, 179 Red Motor, 86kw EH Special S4, 3 Speed, 8/63-1/65
Holden Special 1965-1966, 179ci, 179 X2 Red Motor, 104kw HD, 3 Speed, 2/65-3/66
Holden Special 1965-1966, 179ci, 179 Red Motor, 86kw HD, 3 Speed, 2/65-3/66
Holden Special 1965-1966, 149ci, 149 HC Red Motor, 75kw HD, 3 Speed, 2/65-3/66
Holden Special 1965-1966, 149ci, 149 LC Red Motor, 71kw HD, 3 Speed, 2/65-3/66
Holden Special 1966-1967, 186ci, 186 Red Motor, 94kw HR, 3 Speed, 4/66-12/67
Holden Special 1966-1967, 186ci, 186 X2 Red Motor, 108kw HR, 3 Speed, 4/66-5/67
Holden Special 1967-1967, 186ci, 186 S Red Motor, 108kw HR, 3 Speed, 6/67-12/67
Holden Special 1966-1967, 161ci, 161 LC Red Motor, 81kw HR, 3 Speed, 4/66-12/67
Holden Special 1966-1967, 161ci, 161 HC Red Motor, 85kw HR, 3 Speed, 4/66-12/67
Holden Standard 1963-1965, 149ci, 149 LC Red Motor, 71kw EH, 3 Speed, 8/63-1/65
Holden Standard 1963-1965, 149ci, 149 HC Red Motor, 75kw EH, 3 Speed, 8/63-1/65
Holden Standard 1965-1966, 179ci, 179 Red Motor, 86kw HD, 3 Speed, 2/65-3/66
Holden Standard 1965-1966, 149ci, 149 LC Red Motor, 71kw HD, 3 Speed, 2/65-3/66
Holden Standard 1965-1966, 149ci, 149 HC Red Motor, 75kw HD, 3 Speed, 2/65-3/66
Holden Standard 1965-1966, 179ci, 179 X2 Red Motor, 104kw HD, 3 Speed, 2/65-3/66
Holden Standard 1966-1967, 161ci, 161 LC Red Motor, 81kw HR, 3 Speed, 4/66-12/67
Holden Standard 1966-1967, 186ci, 186 X2 Red Motor, 108kw HR, 3 Speed, 4/66-5/67
Holden Standard 1966-1967, 186ci, 186 Red Motor, 94kw HR, 3 Speed, 4/66-12/67
Holden Standard 1967-1967, 186ci, 186 S Red Motor, 108kw HR, 3 Speed, 6/67-12/67
Holden Standard 1966-1967, 161ci, 161 HC Red Motor, 85kw HR, 3 Speed, 4/66-12/67

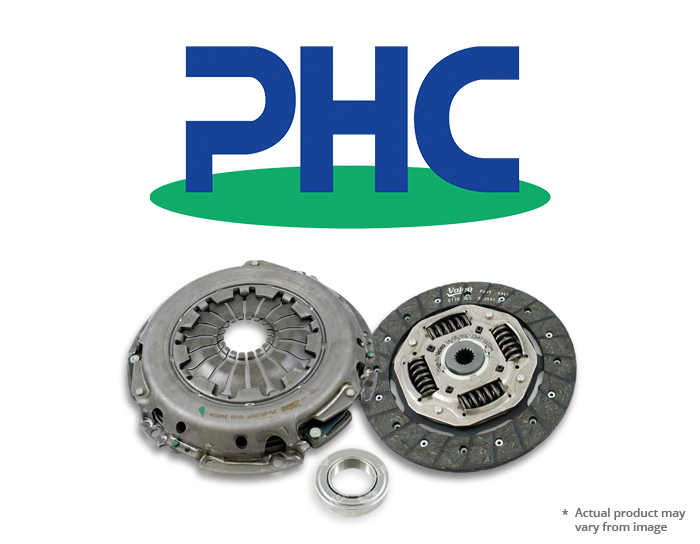

Generic image shown, you will be sent the correct product that you have purchased.
