Installing a new clutch is an exercise in frustration, mainly because you have to manhandle a giant transmission underneath your car. The last thing you want to do is have to start all over because the clutch plate slipped out of alignment and won't engage with the input shaft. Save yourself some time and effort and use a clutch alignment tool to make sure this does not happen to you. The tools are very simple, made from injection moulded plastic or nylon, you need the tool that matches your transmission. This is a matter of knowing the spline count on the input shaft. If the splines don't line up, it won't work. Do not try to fudge it with a tool that does not fully engage the spines. If your clutch alignment tool does not fit the pilot bearing/bushing, it is the wrong one, you need to get the correct one. On the back of the engine, the flywheel bolts to the crank. Inside the crank is a recess for the bearing. The tip of the clutch alignment tool locks into the bearing, keeping your clutch in place. First, insert the tool into the clutch plate. Make sure the clutch is facing the correct direction. The tool should stick all the way through the spines on the plate. Then place the clutch on the flywheel, and engage the alignment tool into the pilot bushing or bearing in the centre of the crankshaft. Push the clutch tight to the flywheel. The tool goes into the clutch plate, and then the tool is installed into the bearing on the flywheel. It should not move around at all. With the clutch on the flywheel, install the pressure plate to the flywheel and start the bolts. Wiggle the alignment tool to make sure it is fully engaged and seated in the pilot bushing/bearing. Tighten the pressure plate bolts in a criss-cross pattern and then torque to spec. The clutch alignment tool stays in the clutch until you are ready to install the transmission. While the pressure place should hold the clutch from moving, don't take the risk of pulling the tool out too soon. Once the transmission is ready to install, pop the tool out, and slide the transmission into place. Every application has a different clutch tool. These three tools look similar, and may even mesh together, but they are all different.
Features and Specifications
Clutch Industries (CI) Clutch Alignment Tool Mandatory use on Clutch Installs Ensure optimum clutch life and performance
Dual Mass Flywheel: Not Included
Concentric Slave Cylinder: Not Included
Fitment
Holden Belmont 161ci, 161 HC Red Motor, 85kw HK, Non Synchro First, 1/68-4/69 1968-1969
Holden Belmont 186ci, 186 Red Motor, 94wk HK, Non Synchro First, 1/68-4/69 1968-1969
Holden Belmont 186ci, 186 S Red Motor, 108kw HK, Non Synchro First, 1/68-4/69 1968-1969
Holden Belmont 161ci, 161 LC Red Motor, 81kw HK, Non Synchro First, 1/68-4/69 1968-1969
Holden Kingswood 186ci, 186 Red Motor, 94kw HK, Non Synchro First, 1/68-4/69 1968-1969
Holden Kingswood 186ci, 186 S Red Motor, 108kw HK, Non Synchro First, 1/68-4/69 1968-1969
Holden Kingswood 161ci, 161 HC Red Motor, 85kw HK, Non Synchro First, 1/68-4/69 1968-1969
Holden Monaro 161ci, 161 LC Red Motor, 81kw HK, Non Synchro First, 1/68-4/69 1968-1969
Holden Monaro 186ci, 186 Red Motor, 94kw HK, Non Synchro First, 1/68-4/69 1968-1969
Holden Monaro 186ci, 186 S Red Motor, 108kw HK, Non Synchro First, 1/68-4/69 1968-1969
Holden Premier 179ci, 179 Red Motor, 86kw EH, 3 Speed, 8/63-1/65 1963-1965
Holden Premier 179ci, 179 X2 Red Motor, 104kw HD, 3 Speed, 2/65-3/66 1965-1966
Holden Premier 179ci, 179 Red Motor, 86kw HD, 3 Speed, 2/65-3/66 1965-1966
Holden Premier 186ci, 186 X2 Red Motor, 108kw HR, 3 Speed, 4/66-5/67 1966-1967
Holden Premier 186ci, 186 S Red Motor, 108kw HR, 3 Speed, 6/67-12/67 1967-1967
Holden Premier 186ci, 186 Red Motor, 94kw HR, 3 Speed, 4/66-12/67 1966-1967
Holden Premier 186ci, 186 S Red Motor, 108kw HK, Non Synchro First, 1/68-4/69 1968-1969
Holden Premier 186ci, 186 Red Motor, 94kw HK, Non Synchro First, 1/68-4/69 1968-1969
Holden Special 149ci, 149 HC Red Motor, 75kw EH, 3 Speed, 8/63-1/65 1963-1965
Holden Special 149ci, 149 LC Red Motor, 71kw EH, 3 Speed, 8/63-1/65 1963-1965
Holden Special 179ci, 179 Red Motor, 86kw EH Special S4, 3 Speed, 8/63-1/65 1963-1965
Holden Special 179ci, 179 X2 Red Motor, 104kw HD, 3 Speed, 2/65-3/66 1965-1966
Holden Special 179ci, 179 Red Motor, 86kw HD, 3 Speed, 2/65-3/66 1965-1966
Holden Special 149ci, 149 HC Red Motor, 75kw HD, 3 Speed, 2/65-3/66 1965-1966
Holden Special 149ci, 149 LC Red Motor, 71kw HD, 3 Speed, 2/65-3/66 1965-1966
Holden Special 186ci, 186 Red Motor, 94kw HR, 3 Speed, 4/66-12/67 1966-1967
Holden Special 186ci, 186 X2 Red Motor, 108kw HR, 3 Speed, 4/66-5/67 1966-1967
Holden Special 186ci, 186 S Red Motor, 108kw HR, 3 Speed, 6/67-12/67 1967-1967
Holden Special 161ci, 161 LC Red Motor, 81kw HR, 3 Speed, 4/66-12/67 1966-1967
Holden Special 161ci, 161 HC Red Motor, 85kw HR, 3 Speed, 4/66-12/67 1966-1967
Holden Standard 149ci, 149 LC Red Motor, 71kw EH, 3 Speed, 8/63-1/65 1963-1965
Holden Standard 149ci, 149 HC Red Motor, 75kw EH, 3 Speed, 8/63-1/65 1963-1965
Holden Standard 179ci, 179 Red Motor, 86kw HD, 3 Speed, 2/65-3/66 1965-1966
Holden Standard 149ci, 149 LC Red Motor, 71kw HD, 3 Speed, 2/65-3/66 1965-1966
Holden Standard 149ci, 149 HC Red Motor, 75kw HD, 3 Speed, 2/65-3/66 1965-1966
Holden Standard 179ci, 179 X2 Red Motor, 104kw HD, 3 Speed, 2/65-3/66 1965-1966
Holden Standard 161ci, 161 LC Red Motor, 81kw HR, 3 Speed, 4/66-12/67 1966-1967
Holden Standard 186ci, 186 X2 Red Motor, 108kw HR, 3 Speed, 4/66-5/67 1966-1967
Holden Standard 186ci, 186 Red Motor, 94kw HR, 3 Speed, 4/66-12/67 1966-1967
Holden Standard 186ci, 186 S Red Motor, 108kw HR, 3 Speed, 6/67-12/67 1967-1967
Holden Standard 161ci, 161 HC Red Motor, 85kw HR, 3 Speed, 4/66-12/67 1966-1967

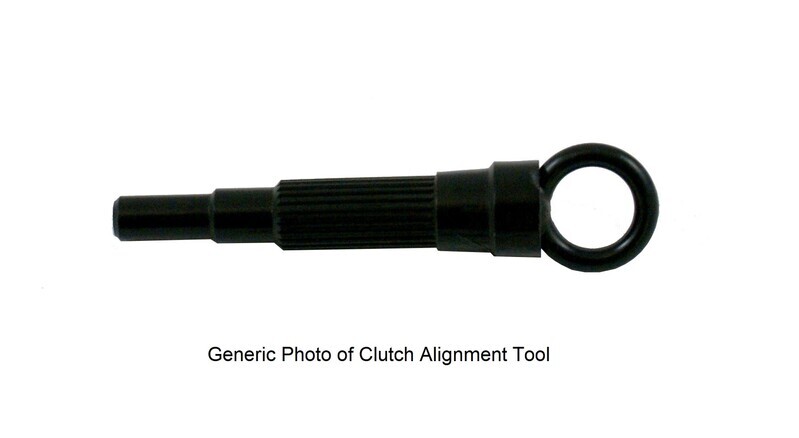

Generic image shown, you will be sent the correct product that you have purchased.
