Installing a new clutch is an exercise in frustration, mainly because you have to manhandle a giant transmission underneath your car. The last thing you want to do is have to start all over because the clutch plate slipped out of alignment and won't engage with the input shaft. Save yourself some time and effort and use a clutch alignment tool to make sure this does not happen to you. The tools are very simple, made from injection moulded plastic or nylon, you need the tool that matches your transmission. This is a matter of knowing the spline count on the input shaft. If the splines don't line up, it won't work. Do not try to fudge it with a tool that does not fully engage the spines. If your clutch alignment tool does not fit the pilot bearing/bushing, it is the wrong one, you need to get the correct one. On the back of the engine, the flywheel bolts to the crank. Inside the crank is a recess for the bearing. The tip of the clutch alignment tool locks into the bearing, keeping your clutch in place. First, insert the tool into the clutch plate. Make sure the clutch is facing the correct direction. The tool should stick all the way through the spines on the plate. Then place the clutch on the flywheel, and engage the alignment tool into the pilot bushing or bearing in the centre of the crankshaft. Push the clutch tight to the flywheel. The tool goes into the clutch plate, and then the tool is installed into the bearing on the flywheel. It should not move around at all. With the clutch on the flywheel, install the pressure plate to the flywheel and start the bolts. Wiggle the alignment tool to make sure it is fully engaged and seated in the pilot bushing/bearing. Tighten the pressure plate bolts in a criss-cross pattern and then torque to spec. The clutch alignment tool stays in the clutch until you are ready to install the transmission. While the pressure place should hold the clutch from moving, don't take the risk of pulling the tool out too soon. Once the transmission is ready to install, pop the tool out, and slide the transmission into place. Every application has a different clutch tool. These three tools look similar, and may even mesh together, but they are all different.
Features and Specifications

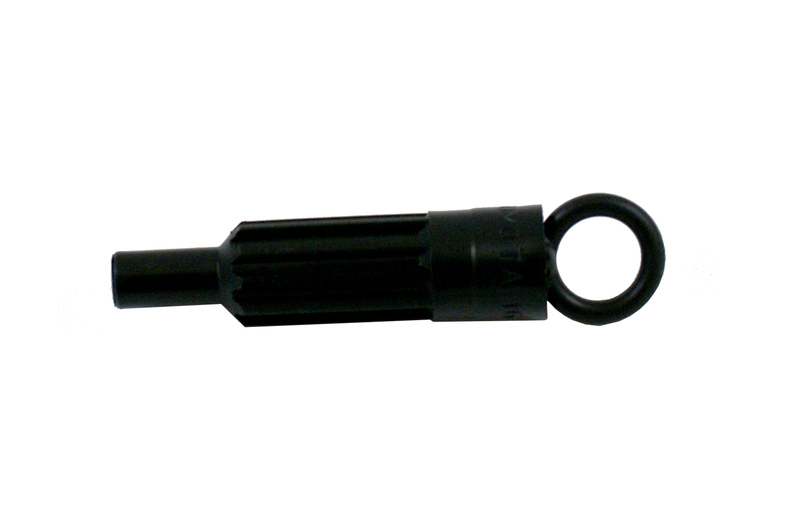

Clutch Industries (CI) Clutch Alignment Tool Mandatory use on Clutch Installs Ensure optimum clutch life and performance
Dual Mass Flywheel: Not Included
Concentric Slave Cylinder: Not Included
Fitment
BMW 316 1.9 Ltr, M43-B19, 77kw 316 E36, 12/98-8/00 1998-2000
BMW 316 1.9 Ltr 316Ci E46, 4/00-2/05 2000-2005
BMW 316 1.9 Ltr, M43 B19, 87kw 316i E46, 2/98-9/01 1998-2001
BMW 316 1.8 Ltr MPFI, N46 B18, 85kw 316i E46, 5 Speed, 9/03-2/05 2003-2005
BMW 316 1.8 Ltr MPFI, N42 B18, 85kw 316i E46, 5 Speed, 9/03-2/05 2003-2005
BMW 316 1.8 Ltr MPFI, N42 B18, 85kw 316ti E46, 5 Speed, 9/03-2/05 2003-2005
BMW 316 1.8 Ltr MPFI, N46 B18, 85kw 316ti E46, 5 Speed, 9/03-2/05 2003-2005
BMW 318 1.9 Ltr, M43 B19, 87kw 318Ci E46, 2/98-9/01 1998-2001
BMW 318 1.9 Ltr, M43 B19, 87kw 318i E46, 5 Speed, 2/98-9/01 1998-2001
BMW 318 2.0 Ltr, N46 B20, 105kw 318Ci E46, 5 Speed, 9/01-9/03 2001-2003
BMW 318 2.0 Ltr MPFI, N42 B20, 105kw 318Ci E46, 5 Speed, 9/01-9/03 2001-2003
BMW 318 2.0 Ltr MPFI, N42 B20, 105kw 318i E46, 5 Speed, 9/01-9/03 2001-2003
BMW 318 2.0 Ltr, N46 B20, 105kw 318i E46, 5 Speed, 9/01-9/03 2001-2003
BMW 318 2.0 Ltr MPFI, N42 B20, 105kw 318ti E46, 5 Speed, 9/01-9/03 2001-2003
BMW 318 2.0 Ltr, N46 B20, 105kw 318ti E46, 5 Speed, 9/01-9/03 2001-2003
BMW 320 2.2 Ltr MPFI, M54 B22, 125kw 320Ci E46, 5 Speed, 9/00-9/03 2000-2003
BMW 320 2.2 Ltr MPFI, M54226S1, 125kw 320Ci E46, 5 Speed, 9/00-9/03 2000-2003
BMW 320 2.2 Ltr MPFi, M54 B22, 125kw 320i E46, 5 Speed, 9/00-9/03 2000-2003
BMW 320 2.2 Ltr MPFi, M54226S1, 125kw 320i E46, 5 Speed, 9/00-9/03 2000-2003
BMW 320 2.0 Ltr MPFI, 110kw 320i E90, 6 Speed, 5/05-8/07 2005-2007
BMW 323 2.5 Ltr MPFI, M52 B25, 125kw 323Ci E46, 5 Speed, 3/98-10/00 1998-2000
BMW 323 2.5 Ltr MPFI, M52 B25, 125kw 323i E46, 3/98-10/00 1998-2000
BMW 325 2.5 Ltr MPFI, M54256S5, 141kw 325Ci E46, 5 Speed, 9/00-9/03 2000-2003
BMW 325 2.5 Ltr MPFI, M54 B25, 141kw 325Ci E46, 5 Speed, 8/00-9/03 2000-2003
BMW 325 2.5 Ltr MPFI, M54 B25, 141kw 325i E46, 5 Speed, 8/00-12/01 2000-2001
BMW 325 2.5 Ltr MPFI, M54 B25, 141kw 325ti E46, 5 Speed, 8/00-9/03 2000-2003
BMW 325 2.5 Ltr MPFI, M54256S5, 141kw 325ti E46, 5 Speed, 9/00-9/03 2000-2003
BMW 325 2.5 Ltr MPFI, M54 B25, 141kw 325Ci E46, 6 Speed Sequential, 9/00-3/03 2000-2003
BMW 325 2.5 Ltr MPFI, M54256S5, 141kw 325Ci E46, 6 Speed Sequential, 9/00-3/03 2000-2003
BMW 325 2.5 Ltr MPFI, M54 B25, 141kw 325i E46, 6 Speed Sequential, 9/00-12/01 2000-2001
BMW 325 2.5 Ltr MPFI, M54 B25, 141kw 325ti E46, 6 Speed Sequential, 9/00-3/03 2000-2003
BMW 325 2.5 Ltr MPFI, M54256S5, 141kw 325ti E46, 6 Speed Sequential, 9/00-3/03 2000-2003
BMW 328 2.8 Ltr MPFI, M52 B28, 142kw 328Ci E46, 5 Speed, 2/98-9/00 1998-2000
BMW 328 2.8 Ltr MPFI, M52 B28, 142kw 328i E46, 5 Speed, 2/98-9/00 1998-2000
BMW 330 3.0 Ltr MPFI, M54306S3, 170kw 330Ci E46, 6 Speed, 6/00-3/03 2000-2003
BMW 330 3.0 Ltr MPFI, M54306S3, 170kw 330i E46, 6 Speed, 6/00-3/03 2000-2003
BMW 330 3.0 Ltr MPFI, M54306S3, 170kw 330xi E46, 6 Speed, 6/00-3/03 2000-2003
BMW 330 3.0 Ltr MPFI, M54306S3, 170kw 330Ci E46, 6 Speed Sequential, 6/00-3/03 2000-2003
BMW 330 3.0 Ltr MPFI, M54306S3, 170kw 330i E46, 6 Speed Sequential, 6/00-3/03 2000-2003
BMW 330 3.0 Ltr MPFI, M54306S3, 170kw 330xi E46, 6 Speed Sequential, 6/00-3/03 2000-2003
BMW 520 2.0 Ltr MPFI, M52 B20, 110kw 520i E39, 5 Speed, 7/97-4/04 1997-2004
BMW 520 2.2 Ltr MPFI, M54 B22, 125kw 520i E39, 5 Speed, 7/00-4/04 2000-2004
BMW 523 2.5 Ltr MPFI, M52 B25, 125kw 523i E39, 10/97-4/04 1997-2004
BMW 525 2.5 Ltr MPFI, M54 B25, 141kw 525i E39, 5 Speed, 9/00-4/04 2000-2004
BMW 528 2.8 Ltr MPFI, M52 B28, 142kw 528i E39, 10/97-9/00 1997-2000
BMW M3 3.2 Ltr DOHC, S50-B32, 236kw E36, 6 Speed, 10/95-4/99 1995-1999
BMW M3 3.2 Ltr DOHC, S50-B32, 236kw E36, 6 Speed Sequential, 10/95-4/99 1995-1999
BMW Z3 2.8 Ltr, M52-B28, 141kw 10/98-6/00 1998-2000
BMW Z3 2.8 Ltr, M52-B28TU, 141kw 10/98-6/00 1998-2000
BMW Z3 2.0 Ltr, M52-B20, 110kw 4/99-1/03 1999-2003
BMW Z3 2.2 Ltr, M54-B22, 125kw 4/99-1/03 1999-2003
BMW Z3 2.2 Ltr, M54226S1, 125kw 4/99-1/03 1999-2003
BMW Z3 2.0 Ltr, M52B206S4, 110kw 4/99-1/03 1999-2003
BMW Z3 1.9 Ltr, M43-B19, 87kw 7/98-1/03 1998-2003
BMW Z3 3.2 Ltr, S50-B32, 236kw M, 2/98-6/01 1998-2001
BMW Z3 3.2 Ltr, S54-B32, 239kw M, 6/01-6/03 2001-2003
BMW Z3 3.2 Ltr, S54326S4, 239kw M, 6/01-6/03 2001-2003
Toyota DA Series 6.5 Ltr, 2D DA110, 5/77-4/92 1977-1992
Toyota DA Series 6.5 Ltr, 2D DA110, 1/69-4/77 1969-1977
Toyota DA Series 6.5 Ltr, 2D DA115, 1/69-4/77 1969-1977
Toyota DA Series 6.5 Ltr, 2D DA115, 5/77-4/92 1977-1992
Toyota Dyna 3.6 Ltr, H HU15, 6/69-8/80 1969-1980
Toyota Dyna 4.0 Ltr, 2H HU26, 4/82-4/83 1982-1983
Toyota Dyna 3.6 Ltr, H HU30, 2/72-8/80 1972-1980
Toyota Dyna 4.0 Ltr, 2H HU40, 4/82-4/83 1982-1983
Toyota Dyna 4.0 Ltr, 2H HU50, 4/82-4/83 1982-1983
Toyota Dyna 4.0 Ltr, 1W WU70, 9/88-12/91 1988-1991
Toyota Dyna 4.0 Ltr, 1W WU70, 8/84-12/87 1984-1987
Toyota Dyna 4.0 Ltr, 1W WU70, 1/88-8/88 1988-1988
Toyota Dyna 4.0 Ltr, 1W WU75, 9/88-12/91 1988-1991
Toyota Dyna 4.0 Ltr, 1W WU75, 8/84-8/87 1984-1987
Toyota Dyna 4.0 Ltr, 1W WU75, 1/88-8/88 1988-1988
Toyota Dyna 4.0 Ltr, 1W WU85, 9/88-12/91 1988-1991
Toyota Dyna 4.0 Ltr, 1W WU85, 8/84-8/87 1984-1987
Toyota Dyna 4.0 Ltr, 1W WU85, 1/88-8/88 1988-1988
Toyota Dyna 4.0 Ltr, 1W WU90, 9/88-12/91 1988-1991
Toyota Dyna 4.0 Ltr, 1W WU90, 8/84-8/87 1984-1987
Toyota Dyna 4.0 Ltr, 1W WU90, 1/88-8/88 1988-1988
Toyota Dyna 4.0 Ltr, 1W WU95, 9/88-12/91 1988-1991
Toyota Dyna 4.0 Ltr, 1W WU95, 8/84-8/87 1984-1987
Toyota Dyna 4.0 Ltr, 1W WU95, 1/88-8/88 1988-1988
Toyota FA Series 3.9 Ltr Petrol, F FA60, 1/63-12/75 1963-1975
Toyota FA Series 4.2 Ltr Petrol, F2 FA60, 1/75-12/80 1975-1980
Toyota FA Series 3.9 Ltr Petrol, F FA70, 1/63-12/75 1963-1975
Toyota FA Series 4.2 Ltr Petrol, 2F FA70, 1/75-12/80 1975-1980
Toyota FA Series 4.2 Ltr Petrol, 2F FA80, 1/75-12/80 1975-1980
Toyota FA Series 3.9 Ltr Petrol, F FA80, 1/63-12/75 1963-1975
Toyota FA Series 4.2 Ltr Petrol, 2F FA90, 1/75-12/80 1975-1980
Toyota FA Series 3.9 Ltr Petrol, F FA90, 1/63-12/75 1963-1975
Toyota FA Series 3.9 Ltr Petrol, F FA95, 1/63-12/75 1963-1975
Toyota FA Series 4.2 Ltr Petrol, 2F FA95, 1/75-12/80 1975-1980
Toyota FA Series 4.2 Ltr Petrol, 2F FA100, 1/75-12/80 1975-1980
Toyota FA Series 3.9 Ltr Petrol, F FA100, 1/63-12/75 1963-1975
Toyota FA Series 3.9 Ltr Petrol, F FA110, 1/63-12/75 1963-1975
Toyota FA Series 4.2 Ltr Petrol, 2F FA110, 1/75-12/80 1975-1980
Toyota FA Series 3.9 Ltr Petrol, F FA115, 1/63-12/75 1963-1975
Toyota FA Series 4.2 Ltr Petrol, 2F FA115, 1/75-12/80 1975-1980
Toyota Landcruiser 4.2 Ltr, 2F FJ40, 1/75-8/87 1975-1987
Toyota Landcruiser 3.9 Ltr, F FJ40, 8/74-2/79 1974-1979
Toyota Landcruiser 3.9 Ltr, F FJ40, 1/63-8/74 1963-1974
Toyota Landcruiser 3.9 Ltr, F FJ45, 8/74-2/79 1974-1979
Toyota Landcruiser 4.2 Ltr, 2F FJ45, 1/75-8/87 1975-1987
Toyota Landcruiser 3.9 Ltr, F FJ45, 1/63-8/74 1963-1974
Toyota Landcruiser 4.2 Ltr, 2F FJ55, 1/75-8/87 1975-1987
Toyota Landcruiser 3.9 Ltr, F FJ55, 8/74-2/79 1974-1979
Toyota Landcruiser 3.9 Ltr, F FJ55, 1/63-8/74 1963-1974
Toyota Landcruiser 4.2 Ltr, 2F FJ60, 1/75-12/84 1975-1984
Toyota Landcruiser 4.0 Ltr, 3F FJ62, 10/87-1/90 1987-1990
Toyota Landcruiser 4.0 Ltr, 3F FJ62, 2/90-8/92 1990-1992
Toyota Landcruiser 4.0 Ltr, 3F FJ62, 11/84-9/87 1984-1987
Toyota Landcruiser 4.0 Ltr, 3F FJ70, 10/87-1/90 1987-1990
Toyota Landcruiser 4.0 Ltr, 3F FJ70, 2/90-8/92 1990-1992
Toyota Landcruiser 4.0 Ltr, 3F FJ70, 11/84-9/87 1984-1987
Toyota Landcruiser 4.0 Ltr, 3F FJ73, 10/87-1/90 1987-1990
Toyota Landcruiser 4.0 Ltr, 3F FJ73, 2/90-8/92 1990-1992
Toyota Landcruiser 4.0 Ltr, 3F FJ73, 11/84-9/87 1984-1987
Toyota Landcruiser 4.0 Ltr, 3F FJ75, 10/87-1/90 1987-1990
Toyota Landcruiser 4.0 Ltr, 3F FJ75, 2/90-8/92 1990-1992
Toyota Landcruiser 4.0 Ltr, 3F FJ75, 11/84-9/87 1984-1987
Toyota Landcruiser 4.0 Ltr, 3F FJ80, 6/90-12/92 1990-1992
Toyota Landcruiser 3.6 Ltr Diesel, H HJ45, 4/72-7/80 1972-1980
Toyota Landcruiser 4.0 Ltr Diesel, 2H HJ47, 8/88-12/90 1988-1990
Toyota Landcruiser 4.0 Ltr Diesel, 2H HJ47, 3/81-8/88 1981-1988
Toyota Landcruiser 4.0 Ltr Diesel, 2H HJ60, 5 Speed, 10/87-1/90 1987-1990
Toyota Landcruiser 4.0 Ltr Diesel, 2H HJ60, 4 Speed, 3/80-9/82 1980-1982
Toyota Landcruiser 4.0 Ltr Diesel, 2H HJ60, 5 Speed, 10/82-9/87 1982-1987
Toyota Landcruiser 4.0 Ltr TDI, 12H-T HJ61, 10/87-1/90 1987-1990
Toyota Landcruiser 4.0 Ltr TDI, 12H-T HJ61, 1/86-9/87 1986-1987
Toyota Landcruiser 4.0 Ltr Diesel, 2H HJ75, 10/87-1/90 1987-1990
Toyota Landcruiser 4.0 Ltr Diesel, 2H HJ75, 3/81-9/87 1981-1987 ORANGE
Generic image shown, you will be sent the correct product that you have purchased.
