This clutch kit is designed to replace the Original Equipment (OE) unit including the OE flywheel.
This kit includes a solid mass flywheel (SMF). If your vehicle was fitted with a dual mass flywheel (DMF) as original equipment (OE), changing from a dual mass flywheel (DMF) to a solid flywheel (SMF) increases the reliability of your clutch system and allows the flywheel to be machined for longer life. However you might experience slightly more noise or vibration compared to a DMF clutch system. Designed and manufactured to replace the clutch system installed as Original Equipment, a Mantic Track replacement clutch kit offers a extremely high torque capacity increase. Each component has been thoroughly tested and developed for a specific application. This range provides a Quality Assured replacement part that will meet or exceed the requirements of the original unit. After 70 years of experience in developing and manufacturing clutch kits for OEM and Aftermarket use, CI is the trusted source for a complete range of Clutch Kits suited to your vehicle. WHY CHOOSE A MANTIC TRACK MULTIPLATE CLUTCH KIT: Performance Clutch Systems typically involve an increase in clamp load and/or use of aggressive friction material to achieve higher torque capacity. However there is a practical limit - Increasing clamp load by more than 20% can put the vehicles hydraulic system under stress, significantly reducing clutch system life and resulting in very high clutch pedal actuation effort. And the use of aggressive friction material will noticeably reduce driveability. Enter the benefits of a Mantic multi-plate clutch system. A 9 Twin Plate Mantic Track system has the same effective surface area as an 18 single plate clutch; and a 9 Triple Plate Mantic Track system equates to 27. So increasing clamp load is no longer a priority as the significantly larger surface area creates a massive torque capacity increase. LIGHTENED ALU
MiniMUM MANTIC TRACK COVER ASSEMBLY: Mantic Track cover assemblies are extremely light which reduce the moment of inertia (MOI) acting on crank rotation mass, allowing your vehicle to develop faster acceleration through easier revving. CERAMETALLIC FRICTION MATERIAL CLUTCH PLATES - NON SPRUNG: The Torque Capacity of a Clutch Plate can be increased by using exotic cerametallic friction material featuring a higher coefficient of friction. However, cerametallic material reduces pedal feel and results in more sudden clutch engagement, reducing street driveability. This Mantic Track Clutch System features High Performance engineered and manufactured cerametallic friction material on both sides of the clutch plates. This results in a strong torque capacity increase compared with Organic alternatives - but reduced street driveability. The plates in this kit include cushioned segments and a non-sprung hub - more suitable to motorsport use. STEEL BILLET PRECISION MACHINED FLYWHEEL: This is a Direct Fit Mantic Track Clutch kit and therefore includes a precision machined billet flywheel designed to suit high RPM applications. The flywheel includes a bolt kit and everything you need to assemble your Mantic Track Clutch System. If you wish to assemble a Mantic Track Clutch System to a different flywheel, as you have a non-standard engine/gearbox configuration, contact us for details on our non-direct fit kits.
This kit includes : Mantic Alu
Minium Billet Cover Assembly, Twin Cerametallic Clutch Plates featuring from High Performance Manufactured Friction Material, No Cushion - More Suited to Track Use, Concentric Slave Cylinder, Billet Machined Solid Mass Flywheel
Features and Specifications
9 Lightened Alu
Minium Cover Assembly Twin Cerametallic Clutch Plates, Non Sprung High Performance Engineered Friction Material
Dual Mass Flywheel: Not Included
Solid Flywheel: Included Concentric Slave Cylinder: Included Spigot: RSB590 Alignment Tool: CAT191
Torque Capacity: Peak: 2050Nm, Rated: 1367Nm
Fitment
Holden Commodore 5.7 Ltr, V8 GEN III, 225kw VT Series II, 6 Speed, 6/99-10/00 1999-2000
Holden Commodore 5.7 Ltr, V8 GEN III, 225kw VU, 6 Speed, 1/01-9/02 2001-2002
Holden Commodore 5.7 Ltr, V8 GEN III, 225kw VX, 6 Speed, 8/00-9/02 2000-2002
Holden Commodore 5.7 Ltr, V8 GEN III, 225kw VY, 6 Speed, 9/02-7/04 2002-2004
Holden Commodore 5.7 Ltr, V8 GEN III, 250kw VZ, 6 Speed, 8/04-1/06 2004-2006
Holden Commodore 6.0 Ltr MPFI, Gen 4 (LS2), 260kw VZ, 6 Speed, 2/06-7/06 2006-2006
Holden Crewman 5.7 Ltr MPFI, 225kw Crew Cab Utility, VY, 6 Speed, 9/03-7/04 2003-2004
Holden Crewman 5.7 Ltr MPFI, 235kw Crew Cab Utility, VZ, 6 Speed, 9/05-7/06 2005-2006
HSV Clubsport 5.7 Ltr, GEN III (LS1), 250kw VT, 6 Speed, 7/99-10/00 1999-2000
HSV Clubsport 5.7 Ltr, GEN III (LS1), 250kw VT R8, 6 Speed, 7/99-10/00 1999-2000
HSV Clubsport 5.7 Ltr, GEN III (LS1), 255kw VX, 6 Speed, 9/00-9/02 2000-2002
HSV Clubsport 5.7 Ltr, GEN III (LS1), 255kw VX R8, 6 Speed, 9/00-9/02 2000-2002
HSV Clubsport 5.7 Ltr, GEN III (LS1), 260kw VY, 6 Speed, 10/02-8/03 2002-2003
HSV Clubsport 5.7 Ltr, GEN III (LS1), 260kw VY R8, 6 Speed, 10/02-8/03 2002-2003
HSV Clubsport 5.7 Ltr, GEN III (LS1), 285kw VY R8, 6 Speed, 9/03-9/04 2003-2004
HSV Clubsport 6.0 Ltr MPFI, Gen 4 (LS2), 297kw VZ, 6 Speed, 10/04-7/06 2004-2006
HSV Clubsport 6.0 Ltr MPFI, Gen 4 (LS2), 297kw VZ R8, 6 Speed, 10/04-7/06 2004-2006
HSV Coupe 5.7 Ltr, GEN III (LS1), 285kw V2 GTO, 6 Speed, 9/03-9/04 2003-2004
HSV Coupe 5.7 Ltr, GEN III (LS1), 255kw V2 GTO, 6 Speed, 12/01-8/03 2001-2003
HSV Coupe 5.7 Ltr, GEN III (LS1), 300kw V2 GTS, 6 Speed, 4/04-9/04 2004-2004
HSV Coupe 5.7 Ltr, GEN III (LS1), 300kw V2 GTS, 6 Speed, 12/01-8/03 2001-2003
HSV Coupe 5.7 Ltr, GEN III (LS1), 270kw VZ, 6 Speed, 10/04-4/06 2004-2006
HSV Coupe 6.0 Ltr MPFI, Gen 4 (LS2), 297kw VZ GTO, 6 Speed, 10/04-12/06 2004-2006
HSV Coupe 6.0 Ltr MPFI, Gen 4 (LS2), 297kw VZ Signature, 6 Speed, 7/06-11/07 2006-2007
HSV GTS 5.7 Ltr, GEN III (LS1), 300kw VT, 6 Speed, 4/00-9/00 2000-2000
HSV GTS 5.7 Ltr, GEN III (LS1), 300kw VX, 6 Speed, 9/00-8/01 2000-2001
HSV GTS 5.7 Ltr, GEN III (LS1), 300kw VY, 6 Speed, 10/02-9/04 2002-2004
HSV Maloo 5.7 Ltr, GEN III (LS1), 255kw VU, 6 Speed, 3/01-9/02 2001-2002
HSV Maloo 5.7 Ltr, GEN III (LS1), 255kw VU R8, 6 Speed, 3/01-9/02 2001-2002
HSV Maloo 5.7 Ltr, GEN III (LS1), 285kw VY, 6 Speed, 10/03-9/04 2003-2004
HSV Maloo 5.7 Ltr, GEN III (LS1), 260kw VY, 6 Speed, 10/02-9/03 2002-2003
HSV Maloo 5.7 Ltr, GEN III (LS1), 260kw VY R8, 6 Speed, 10/02-9/03 2002-2003
HSV Maloo 5.7 Ltr, GEN III (LS1), 285kw VY R8, 6 Speed, 10/03-9/04 2003-2004
HSV Maloo 6.0 Ltr MPFI, Gen 4 (LS2), 297kw VZ, 6 Speed, 10/04-7/07 2004-2007
HSV Maloo 6.0 Ltr MPFI, Gen 4 (LS2), 297kw VZ R8, 6 Speed, 10/04-9/07 2004-2007
HSV Senator 5.7 Ltr, GEN III (LS1), 250kw VT Signature, 6 Speed, 7/99-10/00 1999-2000
HSV Senator 5.7 Ltr, GEN III (LS1), 300kw VX 300, 6 Speed, 3/01-6/01 2001-2001
HSV Senator 5.7 Ltr, GEN III (LS1), 255kw VX Signature, 6 Speed, 9/00-9/02 2000-2002
HSV Senator 5.7 Ltr, GEN III (LS1), 260kw VY, 6 Speed, 10/02-8/03 2002-2003
HSV Senator 5.7 Ltr, GEN III (LS1), 285kw VY, 6 Speed, 9/03-9/04 2003-2004
HSV Senator 5.7 Ltr, GEN III (LS1), 260kw VY Signature, 6 Speed, 10/02-8/03 2002-2003
HSV Senator 5.7 Ltr, GEN III (LS1), 285kw VY Signature, 6 Speed, 9/03-9/04 2003-2004
HSV SV300 5.7 Ltr, GEN III (LS1), 300kw VX, 6 Speed, 9/01-12/01 2001-2001
HSV SV6000 6.0 Ltr MPFI, Gen 4 (LS2), 297kw VZ, 6 Speed, 8/05-4/06 2005-2006
HSV SV99 5.7 Ltr, GEN III (LS1), 250kw VT, 6 Speed, 7/99-4/00 1999-2000

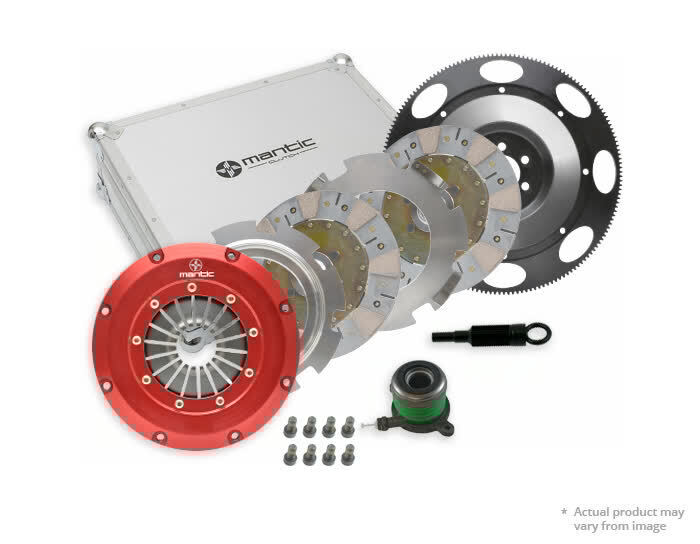

Generic image shown, you will be sent the correct product that you have purchased.
