This clutch kit is designed to replace the Original Equipment (OE) unit including the OE flywheel.
This kit includes a solid steel flywheel (SMF). Designed and manufactured to replace the clutch system installed as Original Equipment, a Mantic Stage 5 replacement clutch kit offers a strong torque capacity increase. Each component has been thoroughly tested and developed for a specific application. This range provides a Quality Assured replacement part that will meet or exceed the requirements of the original unit. After 70 years of experience in developing and manufacturing clutch kits for OEM and Aftermarket use, CI is the trusted source for a complete range of Clutch Kits suited to your vehicle. MANTIC STAGE SERIES COVER ASSEMBLY: Mantic Stage 5 clutch kits feature a 20% increase (over original equipment) in clamp load for increased torque capacity. SPHEROIDAL GRAPHITE CASTINGS: Approximately 300% stronger than a standard casting this material (sometimes referred to as an Anti Burst casting) not only increases strength by up to 3 times, it also improves heat dispersion. BALANCED COVERS: To insure that the clutch system performs at maximum efficiency and that no unwanted vibration is generated as the cover spins, all Mantic Stage cover assemblies undergo a 2 stage balancing process. CERAMETALLIC FRICTION MATERIAL CLUTCH PLATE - NON CUSHIONED, NON SPRUNG: The Torque Capacity of a Clutch Plate can be increased by using exotic cerametallic friction material featuring a higher coefficient of friction. However, cerametallic material reduces pedal feel and results in more sudden clutch engagement, reducing street driveability. Mantic Stage 5 Clutch Kits feature cerametallic friction material on both sides of the clutch plate, no segment cushioning and no hub springs. This results in a strong torque capacity increase compared with Stage 2 and more sudden engagement compared with Stage 3 or 4 kits. This type of configuration is not suitable for street use; but instead is finely tuned for the aggressive shifting required for various forms of motorsport. If you require a significant torque capacity increase, but still wish to drive your vehicle on the road, we recommend you purchase a Mantic Track multi plate clutch kit.

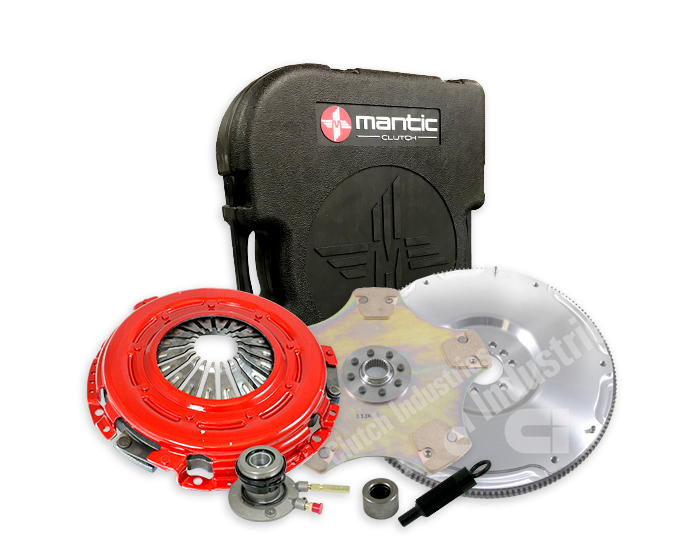

This kit includes : MANTIC Heavy Duty Cover Assembly, Full Cerametallic, No Cushion, Non Sprung (SC) Clutch Plate For Increased Torque capacity. Not for Daily Drive; Track Only., Concentric Slave Cylinder, Solid Mass Flywheel (SMF), Clutch Alignment Too
Features and Specifications
Mantic Heavy Duty SGI Cover Assembly Full Cerametallic Clutch Plate, Non-Cushion, Non-Sprung Includes Solid Mass Flywheel
Dual Mass Flywheel: Not Included
Solid Flywheel: Included Concentric Slave Cylinder: Included Spigot: RSB590 Alignment Tool: CAT191
Torque Capacity: Peak: 1222Nm, Rated: 977Nm
Fitment
Chevrolet Camaro 5.7 Ltr, LS1 6 Speed, 1/98-12/02 1998-2002 Chevrolet Corvette 5.7 Ltr, LS1 C5, 6 Speed, 1/98-12/04 1998-2004
Holden Commodore 5.7 Ltr, V8 GEN III, 225kw VT Series II, 6 Speed, 6/99-10/00 1999-2000
Holden Commodore 5.7 Ltr, V8 GEN III, 225kw VU, 6 Speed, 1/01-9/02 2001-2002
Holden Commodore 5.7 Ltr, V8 GEN III, 225kw VX, 6 Speed, 8/00-9/02 2000-2002
Holden Commodore 5.7 Ltr, V8 GEN III, 225kw VY, 6 Speed, 9/02-7/04 2002-2004
Holden Commodore 5.7 Ltr, V8 GEN III, 250kw VZ, 6 Speed, 8/04-1/06 2004-2006
Holden Commodore 6.0 Ltr MPFI, Gen 4 (LS2), 260kw VZ, 6 Speed, 2/06-7/06 2006-2006
Holden Crewman 5.7 Ltr MPFI, 225kw Crew Cab Utility, VY, 6 Speed, 9/03-7/04 2003-2004
Holden Crewman 5.7 Ltr MPFI, 235kw Crew Cab Utility, VZ, 6 Speed, 9/05-7/06 2005-2006
Holden Monaro 5.7 Ltr, V8 GEN III, 225kw V2 Series I CV8, 6 Speed, 10/01-11/02 2001-2002
Holden Monaro 5.7 Ltr, V8 GEN III, 235kw V2 Series II CV8, 6 Speed, 12/02-7/03 2002-2003
Holden Monaro 5.7 Ltr, V8 GEN III, 245kw V2 Series III CV8, 6 Speed, 8/03-8/04 2003-2004
Holden Monaro 5.7 Ltr, V8 GEN III, 260KW VZ CV8, 6 Speed, 9/04-12/05 2004-2005
HSV Clubsport 5.7 Ltr, GEN III (LS1), 250kw VT, 6 Speed, 7/99-10/00 1999-2000
HSV Clubsport 5.7 Ltr, GEN III (LS1), 250kw VT R8, 6 Speed, 7/99-10/00 1999-2000
HSV Clubsport 5.7 Ltr, GEN III (LS1), 255kw VX, 6 Speed, 9/00-9/02 2000-2002
HSV Clubsport 5.7 Ltr, GEN III (LS1), 255kw VX R8, 6 Speed, 9/00-9/02 2000-2002
HSV Clubsport 5.7 Ltr, GEN III (LS1), 260kw VY, 6 Speed, 10/02-8/03 2002-2003
HSV Clubsport 5.7 Ltr, GEN III (LS1), 260kw VY R8, 6 Speed, 10/02-8/03 2002-2003
HSV Clubsport 5.7 Ltr, GEN III (LS1), 285kw VY R8, 6 Speed, 9/03-9/04 2003-2004
HSV Clubsport 6.0 Ltr MPFI, Gen 4 (LS2), 297kw VZ, 6 Speed, 10/04-7/06 2004-2006
HSV Clubsport 6.0 Ltr MPFI, Gen 4 (LS2), 297kw VZ R8, 6 Speed, 10/04-7/06 2004-2006
HSV Coupe 5.7 Ltr, GEN III (LS1), 285kw V2 GTO, 6 Speed, 9/03-9/04 2003-2004
HSV Coupe 5.7 Ltr, GEN III (LS1), 255kw V2 GTO, 6 Speed, 12/01-8/03 2001-2003
HSV Coupe 5.7 Ltr, GEN III (LS1), 300kw V2 GTS, 6 Speed, 4/04-9/04 2004-2004
HSV Coupe 5.7 Ltr, GEN III (LS1), 300kw V2 GTS, 6 Speed, 12/01-8/03 2001-2003
HSV Coupe 5.7 Ltr, GEN III (LS1), 270kw VZ, 6 Speed, 10/04-4/06 2004-2006
HSV Coupe 6.0 Ltr MPFI, Gen 4 (LS2), 297kw VZ GTO, 6 Speed, 10/04-12/06 2004-2006
HSV Coupe 6.0 Ltr MPFI, Gen 4 (LS2), 297kw VZ Signature, 6 Speed, 7/06-11/07 2006-2007
HSV GTS 5.7 Ltr, GEN III (LS1), 300kw VT, 6 Speed, 4/00-9/00 2000-2000
HSV GTS 5.7 Ltr, GEN III (LS1), 300kw VX, 6 Speed, 9/00-8/01 2000-2001
HSV GTS 5.7 Ltr, GEN III (LS1), 300kw VY, 6 Speed, 10/02-9/04 2002-2004
HSV Maloo 5.7 Ltr, GEN III (LS1), 255kw VU, 6 Speed, 3/01-9/02 2001-2002
HSV Maloo 5.7 Ltr, GEN III (LS1), 255kw VU R8, 6 Speed, 3/01-9/02 2001-2002
HSV Maloo 5.7 Ltr, GEN III (LS1), 285kw VY, 6 Speed, 10/03-9/04 2003-2004
HSV Maloo 5.7 Ltr, GEN III (LS1), 260kw VY, 6 Speed, 10/02-9/03 2002-2003
HSV Maloo 5.7 Ltr, GEN III (LS1), 260kw VY R8, 6 Speed, 10/02-9/03 2002-2003
HSV Maloo 5.7 Ltr, GEN III (LS1), 285kw VY R8, 6 Speed, 10/03-9/04 2003-2004
HSV Maloo 6.0 Ltr MPFI, Gen 4 (LS2), 297kw VZ, 6 Speed, 10/04-7/07 2004-2007
HSV Maloo 6.0 Ltr MPFI, Gen 4 (LS2), 297kw VZ R8, 6 Speed, 10/04-9/07 2004-2007
HSV Senator 5.7 Ltr, GEN III (LS1), 250kw VT Signature, 6 Speed, 7/99-10/00 1999-2000
HSV Senator 5.7 Ltr, GEN III (LS1), 300kw VX 300, 6 Speed, 3/01-6/01 2001-2001
HSV Senator 5.7 Ltr, GEN III (LS1), 255kw VX Signature, 6 Speed, 9/00-9/02 2000-2002
HSV Senator 5.7 Ltr, GEN III (LS1), 260kw VY, 6 Speed, 10/02-8/03 2002-2003
HSV Senator 5.7 Ltr, GEN III (LS1), 285kw VY, 6 Speed, 9/03-9/04 2003-2004
HSV Senator 5.7 Ltr, GEN III (LS1), 260kw VY Signature, 6 Speed, 10/02-8/03 2002-2003
HSV Senator 5.7 Ltr, GEN III (LS1), 285kw VY Signature, 6 Speed, 9/03-9/04 2003-2004
HSV SV300 5.7 Ltr, GEN III (LS1), 300kw VX, 6 Speed, 9/01-12/01 2001-2001
HSV SV6000 6.0 Ltr MPFI, Gen 4 (LS2), 297kw VZ, 6 Speed, 8/05-4/06 2005-2006
HSV SV99 5.7 Ltr, GEN III (LS1), 250kw VT, 6 Speed, 7/99-4/00 1999-2000 Pontiac Firebird 350ci, LS1 6 Speed, 1/98-12/02 1998-2002 Pontiac GTO 5.7 Ltr, LS1 6 Speed, 1/04-12/04 2004-2004
Generic image shown, you will be sent the correct product that you have purchased.
