Holden VN VP VR VS Commodore 304 5L V8 Aeroflow Black Alternator 140 Amp Int Reg AF4270-1140
*Please note, the alternator mounting and position is same as OEM/Orig. There may be wiring modifications needed depending on the vehicle and if it previously has had an alternator changed.
This is as simple as defining or snipping factory 2 pin plug and re-terminating. Very easy install.
Aeroflow has become synonymous with premium quality performance products. Aeroflow's objective has been to incorporate state-of-the-art manufacturing, aerospace quality materials and rigid quality controls to produce quality performance products at extraordinary value, and they’ve done it again with their range of high performance intercoolers.
Aeroflow alternators are manufactured with 140% New components, with completely sealed bearings for reliable operation. Aeroflow alternators have a high Amperage output during idle operation and feature heavy duty internals and regulators for a stable output, and can be wired for either 1-wire or 3-wire installation

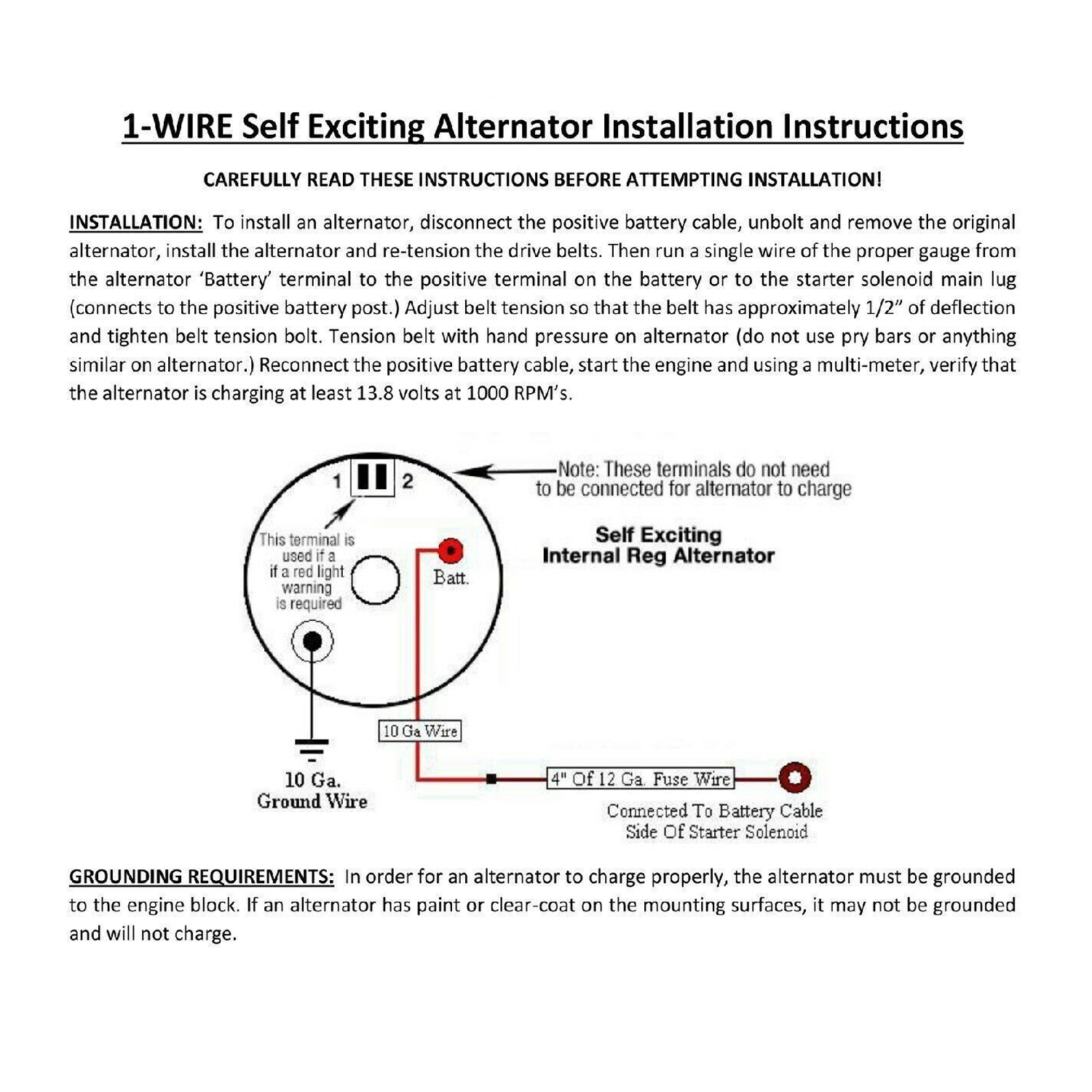

Assembled with top quality components and factory load tested to meet or exceed OEM specifications and ensure the highest output possible at low RPM. Supplied in a one-wire hookup configuration enabling you to run a single wire from the alternator to the battery (positive). Electroplated Black for a functional and durable finish.
Don't waste big dollars having your original alternator rebuilt, when you can buy a Genuine Aeroflow 140 Amp Black Alternator with inbuilt internal regulator at such a bargain price!
Specifications:

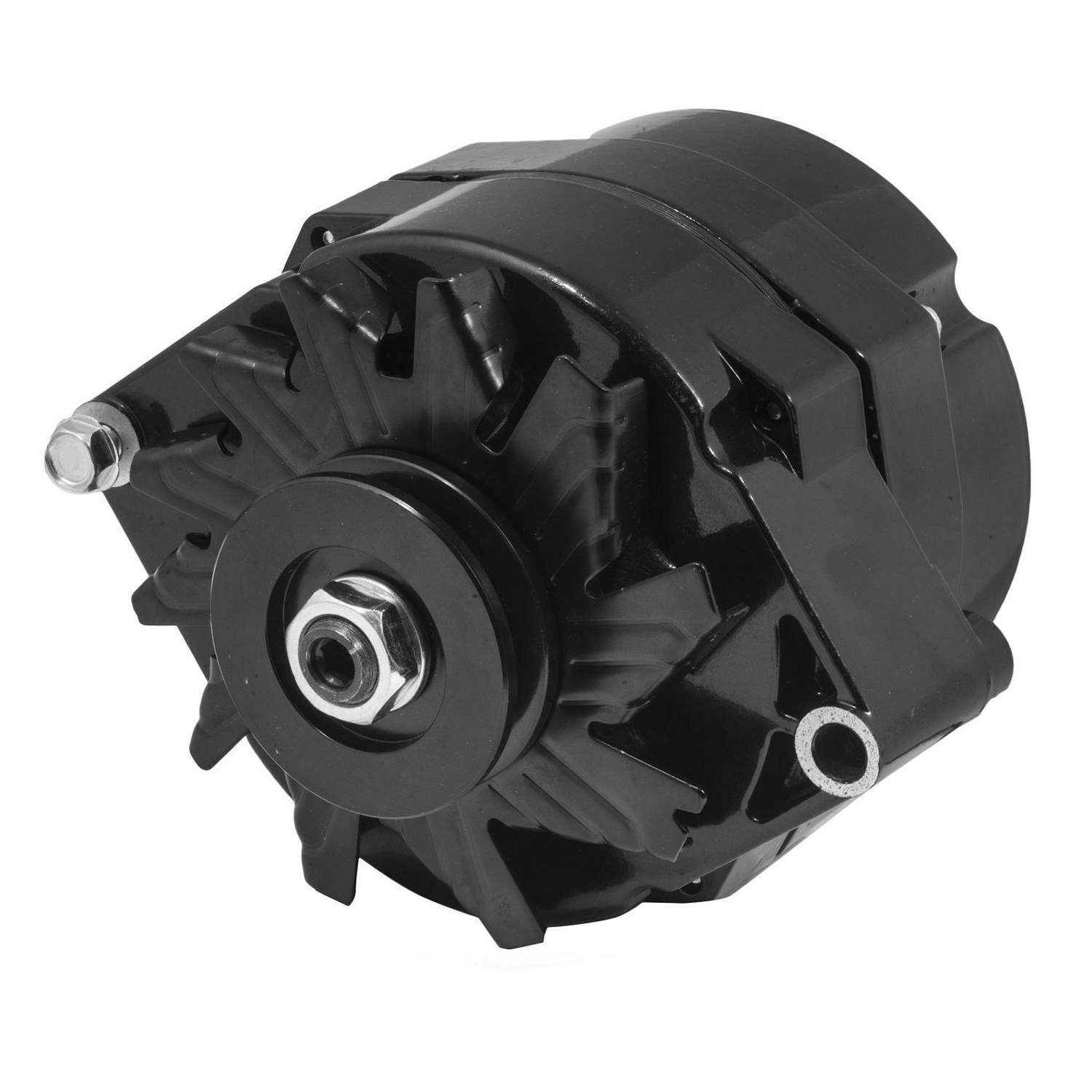

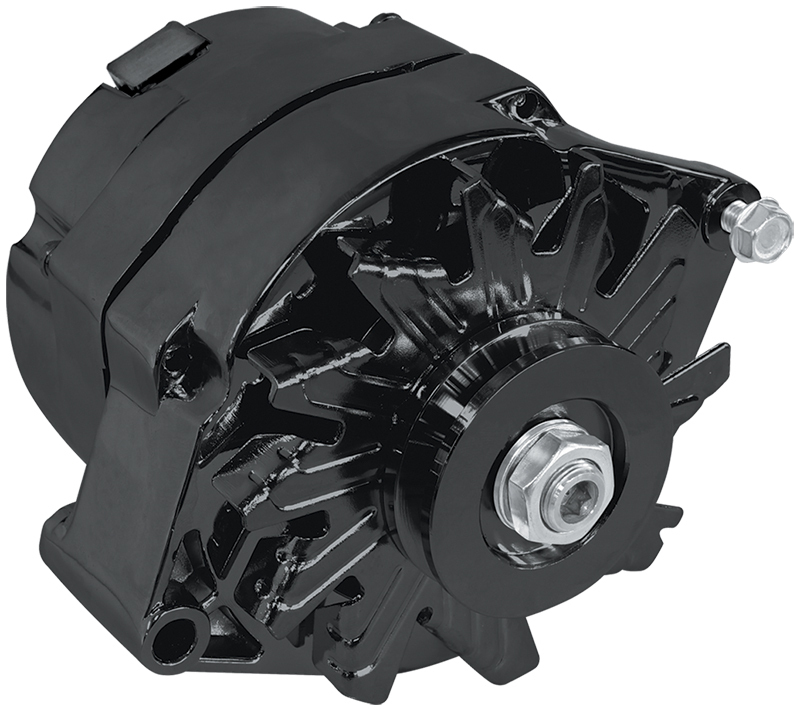

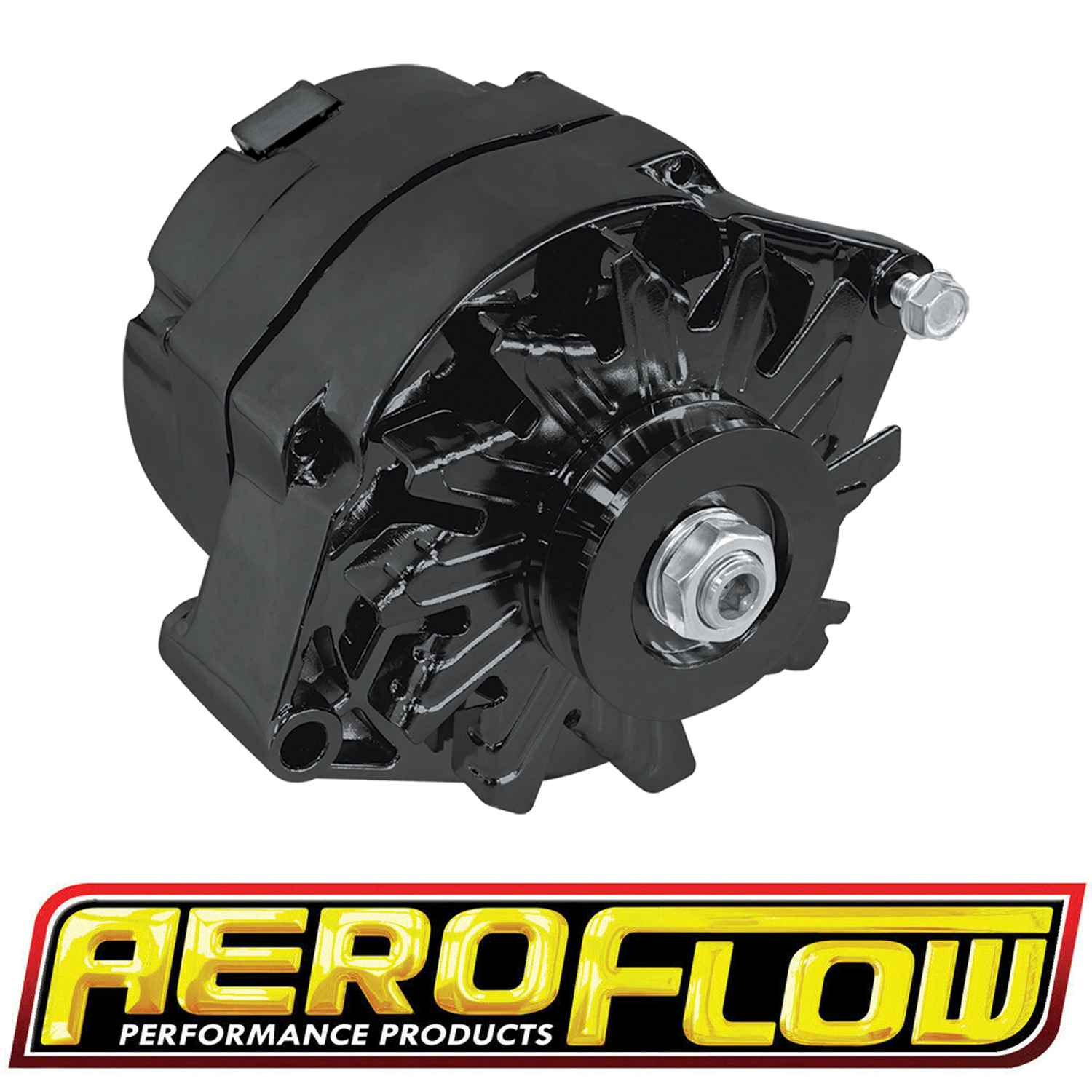

Aeroflow AF4270-1140 140 Amp Black Alternator
Electroplated black for a functional and durable finish
Internal Regulator
Can be used in either 1 wire or 3 wire hookup configuration
Self exciting type alternator
Huge 140 Amp output
Factory load tested and certified before being packed
Supplied and fitted complete with matching black alternator pulley
1 year warranty
Fitment Notes:
Suitable to replace existing 1 wire, V-Belt type, internal regulator GM style alternator.
Mounts measure approximately 18mm outside depth on the short side, 51mm outside depth on the long side.
The measurement between the mounts from the inside edge, to inside edge is 159mm.
The measurement between the mounts from the bolt centres is 6.60".
Utilizes the the standard GM 10SI style case with 6.600” bolt centres.
Total length from the front of the rotor shaft to the deepest point at the rear of the case is approximately 165mm.
Please use the above measurements and information to compare to your original alternator, to ensure correct fitment for your vehicle.
Specifications:
Aeroflow AF4270-1140 140 Amp Black Alternator
Electroplated black for a functional and durable finish
Internal Regulator
Can be used in either 1 wire or 3 wire hookup configuration
Self exciting type alternator
Huge 140 Amp output
Factory load tested and certified before being packed
Supplied and fitted complete with matching black alternator pulley
12 month warranty
Fitment Notes:
Suitable to replace existing 1 wire, V-Belt type, internal regulator GM style alternator.
Mounts measure approximately 18mm outside depth on the short side, 51mm outside depth on the long side.
The measurement between the mounts from the inside edge, to inside edge is 159mm.
The measurement between the mounts from the bolt centres is 6.60".
Utilizes the the standard GM 10SI style case with 6.600” bolt centres.
Total length from the front of the rotor shaft to the deepest point at the rear of the case is approximately 165mm.
Please use the above measurements and information to compare to your original alternator, to ensure correct fitment for your vehicle.
