Aeroflow Braided Turbo Oil Line Kit with Water & Oil Feed Line Support Bracket
Suitable for FG FGX Ford Falcon & FPV 6 Cylinder
Aeroflow has become synonymous with premium quality performance products. Aeroflow's objective has been to incorporate state-of-the-art manufacturing, aerospace quality materials and rigid quality controls to produce quality performance products at extraordinary value. Aeroflow has taken its forward-thinking knowledge to the street, manufacturing a wide range of race quality products to improve street performance and dependability.

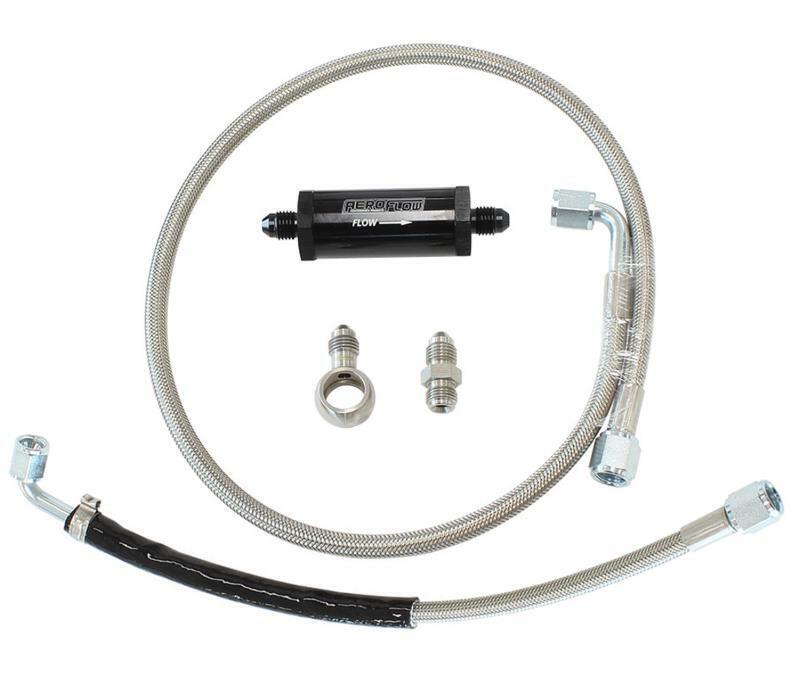

Aeroflow Braided Turbo Oil Line Kit with 40 Micron Billet Filter
Aeroflow have developed a Turbo oil feed line specifically for the Ford Falcon FG inline 6 Turbo Engine. These engines are renowned for blocking up the factory filter and starving oil supply to the turbocharger, ultimately leading to a costly failure.
The Aeroflow line kit includes a filter like nothing else on the market with an extra long cone design filter basket that can be disassembled and the basket can be cleaned along with the regular servicing of the vehicle keeping your turbocharger clean and free from any dangerous contaminants.
This kit is crimped together for strength and reliability using Aeroflow's 200 series 304 stainless steel braided teflon lined hose that can handle extreme heat conditions of up to 250°C. This kit was developed to prolong the life of the Turbocharger by having a serviceable stainless steel filter in the braided oil supply line.
This Aeroflow kit fits perfectly and comes with everything needed for the installation. Upgrade your line today and save the costly headaches.
Specifications:
Aeroflow braided oil feed line & filter kit
Part number AF30-1005
Straight replacement for the factory line for all FG & FGX Ford Falcon XR6 Turbo, G6/G6E Turbo using the standard turbo setup
Comes assembled and consists of the following parts:
Pre-made Aeroflow 200 Series teflon 304 stainless steel braided oil line with fittings
Inline Billet 40 Micron Oil Filter - serviceable and reusable with stainless steel filter element
1 x Banjo to AN fitting
2 x Straight hose ends
2 x 90* hose ends
1 x Turbo to AN adapter fitting
Cleanable & reusable stainless steel filter element
1 year warranty

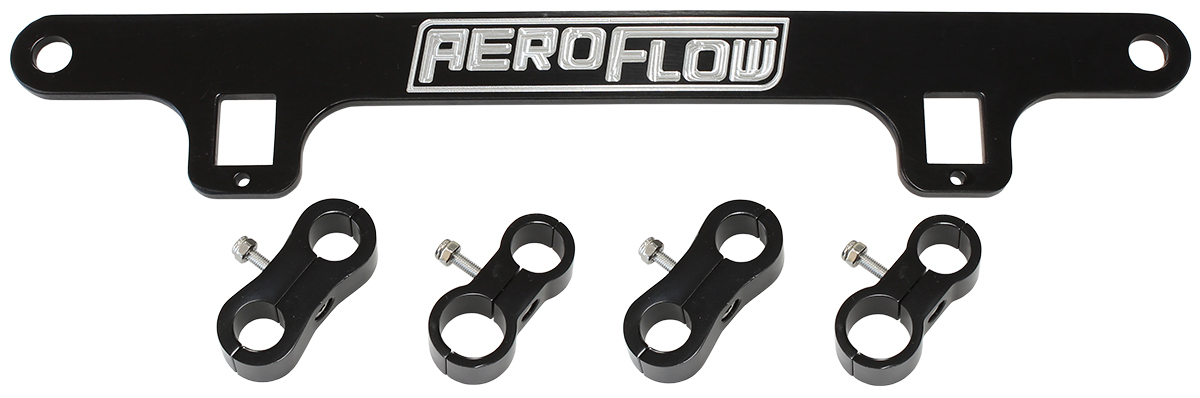

Aeroflow Water & Oil Feed Line Support Bracket
The Aeroflow Performance turbo and water line support bracket is designed for the turbocharged Ford Barra motor to secure the turbo oil and water feed lines from falling onto the drive belt. This bracket is a quick and easy bolt-on design that utilises the 2 front timing case bolts on the front of the engine and comes with two sets of different sized billet separators to suit most custom applications. One set is stepped with internal diameters of 11.1mm and 14.2mm and the second set has an I.D. of 14.2mm on both sides.
This bracket addresses a common issue for Barra Turbo owners and keeps everything at the front of the engine nice and tidy!
Specifications:
Aeroflow Water & Oil Feed Line Support Bracket
Part Number AF64-4369
Quick and easy bolt-on design
Comes supplied with bracket and two sets of billet separators; 11.1mm and 14.2mm, or 14.2mm on both sides
1 year warranty
Fitment Notes:
Direct fitment for all FG & FGX Ford FalconXR6 Turbo, G6/G6E Turbo using the standard turbo setup.
