Installing a new clutch is an exercise in frustration, mainly because you have to manhandle a giant transmission underneath your car. The last thing you want to do is have to start all over because the clutch plate slipped out of alignment and won't engage with the input shaft. Save yourself some time and effort and use a clutch alignment tool to make sure this does not happen to you. The tools are very simple, made from injection moulded plastic or nylon, you need the tool that matches your transmission. This is a matter of knowing the spline count on the input shaft. If the splines don't line up, it won't work. Do not try to fudge it with a tool that does not fully engage the spines. If your clutch alignment tool does not fit the pilot bearing/bushing, it is the wrong one, you need to get the correct one. On the back of the engine, the flywheel bolts to the crank. Inside the crank is a recess for the bearing. The tip of the clutch alignment tool locks into the bearing, keeping your clutch in place. First, insert the tool into the clutch plate. Make sure the clutch is facing the correct direction. The tool should stick all the way through the spines on the plate. Then place the clutch on the flywheel, and engage the alignment tool into the pilot bushing or bearing in the centre of the crankshaft. Push the clutch tight to the flywheel. The tool goes into the clutch plate, and then the tool is installed into the bearing on the flywheel. It should not move around at all. With the clutch on the flywheel, install the pressure plate to the flywheel and start the bolts. Wiggle the alignment tool to make sure it is fully engaged and seated in the pilot bushing/bearing. Tighten the pressure plate bolts in a criss-cross pattern and then torque to spec. The clutch alignment tool stays in the clutch until you are ready to install the transmission. While the pressure place should hold the clutch from moving, don't take the risk of pulling the tool out too soon. Once the transmission is ready to install, pop the tool out, and slide the transmission into place. Every application has a different clutch tool. These three tools look similar, and may even mesh together, but they are all different.
Features and Specifications

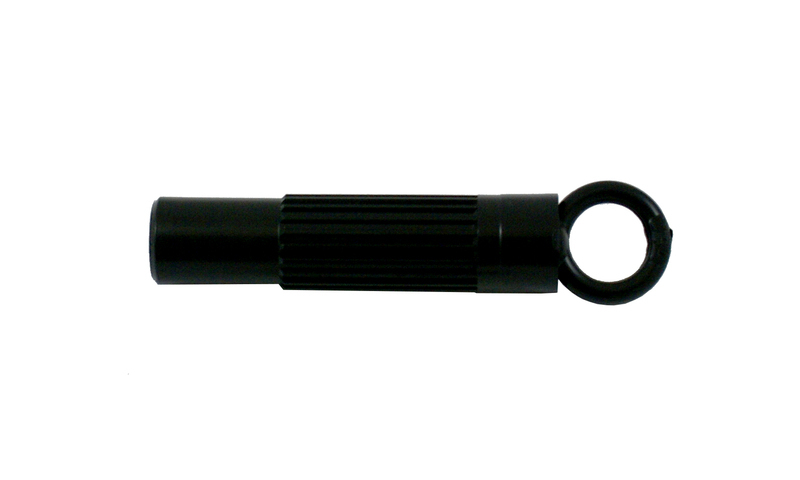

Clutch Industries (CI) Clutch Alignment Tool Mandatory use on Clutch Installs Ensure optimum clutch life and performance
Dual Mass Flywheel: Not Included
Concentric Slave Cylinder: Not Included
Fitment
Holden Apollo 2.0 Ltr, 3S JK, 8/89-7/91 1989-1991
Holden Apollo 2.2 Ltr 16V, 5S JM, 3/93-8/95 1993-1995
Holden Apollo 2.2 Ltr 16V, 5S-FE JP, 9/95-10/96 1995-1996
Toyota Avensis 2.0 Ltr, 3S-FE ST220, 10/97-6/00 1997-2000
Toyota Caldina 2.0 Ltr Diesel, 2C CT190, 1/92-12/97 1992-1997
Toyota Caldina 2.0 Ltr Diesel, 2C CT196, 1/92-12/97 1992-1997
Toyota Caldina 1.8 Ltr, 4SFE, 93kw ST190, 11/92-12/95, New Zealand Model 1992-1995
Toyota Camry-Vienta 2.2 Ltr, 5SFE, 95kw SDV10, 2/93-8/97 1993-1997
Toyota Camry-Vienta 2.0 Ltr, 2S SV11, 1/83-12/89 1983-1989
Toyota Camry-Vienta 1.8 Ltr, 1S SV20 Series I, 1/83-12/89 1983-1989
Toyota Camry-Vienta 2.0 Ltr DOHC, 3S SV20 Series I, 1/87-12/93 1987-1993
Toyota Camry-Vienta 2.0 Ltr DOHC, 3S SV21, 1/87-12/93 1987-1993
Toyota Camry-Vienta 2.0 Ltr DOHC, 3S SV22, 1/87-12/93 1987-1993
Toyota Camry-Vienta 1.8 Ltr, 4SFE, 85kw SV30, 7/90-6/94, New Zealand Model 1990-1994
Toyota Camry-Vienta 2.0 Ltr SV32, 7/90-6/94, New Zealand Model 1990-1994
Toyota Camry-Vienta 1.8 Ltr, 4SFE, 93kw SV40, 7/94-6/98, New Zealand Model 1994-1998
Toyota Camry-Vienta 2.2 Ltr, 5SFE SXV10, 12/93-12/96 1993-1996
Toyota Camry-Vienta 2.2 Ltr, 5S-FE SXV15, 1/93-12/96 1993-1996
Toyota Camry-Vienta 2.2 Ltr, 5S-FE SXV20, 8/97-9/02 1997-2002
Toyota Carina 1.8 Ltr, 4SFE, 93kw ST190, 8/90-7/94, New Zealand Model 1990-1994
Toyota Carina 1.8 Ltr, 4SFE, 93kw ST200, 10/93-12/98, New Zealand Model 1993-1998
Toyota Celica 2.0 Ltr DOHC, 3SGE ST162, 1/86-5/90 1986-1990
Toyota Celica 2.0 Ltr DOHC, 3SFE ST162, 1/86-5/90 1986-1990
Toyota Celica 2.2 Ltr, 5SFE, 97kw ST184, 5/90-3/94 1990-1994
Toyota Celica 2.2 Ltr, 5SFE, 97kw ST184, 11/89-4/90 1989-1990
Toyota Celica 2.0 Ltr DOHC, 3S-FE, 129kw ST202, 1/93-12/97 1993-1997
Toyota Celica 2.0 Ltr DOHC, 3S-FE, 129kw ST203, 1/93-12/97 1993-1997
Toyota Celica 2.2 Ltr, 5SFE, 100kw ST204R, 3/94-11/99 1994-1999
Toyota Corolla 1.8 Ltr Diesel, 1C-L CE80, 5/83-4/87 1983-1987
Toyota Corolla 1.8 Ltr Diesel, 1C CE96V, 1/87-12/91 1987-1991
Toyota Corona 2.0 Ltr Diesel, 2C CT150, 10/83-12/87 1983-1987
Toyota Corona 1.8 Ltr DOHC, 4S-FI ST170, 12/87-11/89 1987-1989
Toyota Corona 2.0 Ltr DOHC EFI, 3S ST171, 5/90-12/92, New Zealand Model 1990-1992
Toyota Corona 2.0 Ltr DOHC, 3S-FC ST171, 5/90-12/92, New Zealand Model 1990-1992
Toyota Corona 2.0 Ltr DOHC EFI, 3S ST171, 12/87-5/90, New Zealand Model 1987-1990
Toyota Corona 1.8 Ltr, 4SFE, 93KW ST190, 2/92-12/95, New Zealand Model 1992-1995
Toyota Corona 1.8 Ltr, 4SFE, 93kw ST200, 10/93-12/98, New Zealand Model 1993-1998
Toyota Curren 2.0 Ltr, 3SFE, 104kw ST206, 1/94-8/99, New Zealand Model 1994-1999
Toyota Curren 1.8 Ltr, 4SFE, 93kw ST208, 10/95-8/99, New Zealand Model 1995-1999
Toyota MR2 2.0 Ltr, 3S-GE SW20, 7/90-3/94 1990-1994
Toyota MR2 2.0 Ltr, 3S-GE SW20, 3/90-6/90 1990-1990
Toyota Sprinter 1.8 Ltr Diesel, 1C-L CE80, 5/83-4/87 1983-1987
Toyota Vista 2.0 Ltr TDI, 2C-T CV20, 1/86-12/90 1986-1990
Toyota Vista 1.8 Ltr, 4SFE, 85kw SV30, 7/90-6/94, New Zealand Model 1990-1994
Toyota Vista 1.8 Ltr, 4SFE, 93kw SV40, 7/94-6/98, New Zealand Model 1994-1998
Toyota Corolla 2.0 Ltr Diesel, 2C-III, 54KW CE100, 6/91-7/00, New Zealand Only 1991-2000
Toyota Corolla 2.0 Ltr Diesel, 54KW CE106, 9/91-4/98, New Zealand Only 1991-1998
Toyota Corona 2.0 Ltr, 3S-FE ST191, 2/92-12/96, New Zealand Only 1992-1996
Toyota Sprinter 2.0 Ltr Diesel, 2C-III, 54KW CE100, 6/91-7/00, New Zealand Only 1991-2000
Toyota Sprinter 2.0 Ltr Diesel, 2C-III, 54KW CE104, 6/91-7/00, New Zealand Only 1991-2000
Toyota Sprinter 2.0 Ltr Diesel, 54KW CE106, 9/91-4/98, New Zealand Only 1991-1998
Toyota Sprinter 2.0 Ltr Diesel, 54KW CE108, 9/91-4/98, New Zealand Only 1991-1998
Toyota Sprinter 2.0 Ltr Diesel, 2C-III, 54KW CE110, 6/91-7/00, New Zealand Only 1991-2000
Toyota Caldina 2.2 Ltr Diesel, 3CE CT197R, 5/98-6/02 1998-2002
Toyota Camry-Vienta 2.0 Tdi, 2CT CV11R, 8/85-7/90, New Zealand Model 1985-1990
Toyota Camry-Vienta 2.0 Tdi, 2CT CV20R, 8/86-5/90, New Zealand Model 1986-1990
Toyota Camry-Vienta 2.0 Tdi, 2CT CV20R, 5/90-7/90 1990-1990
Toyota Camry-Vienta 2.0 Tdi, 2CT CV30R, 7/90-6/94 1990-1994
Toyota Camry-Vienta 2.0 Tdi, 2CT CV40R, 7/94-6/98 1994-1998
Toyota Camry-Vienta 2.0 Ltr, 3S-GELU, 118kw SV12R, 6/84-7/86, New Zealand Model 1984-1986
Toyota Carina 1.8 Ltr, 1S-ILU ST150R, 5/84-4/88 1984-1988
Toyota Carina 1.8 Ltr, 1S-ILU ST160R, 8/85-5/88 1985-1988
Toyota Carina 1.8 Ltr, 4S-FI ST163R, 5/88-8/89 1988-1989
Toyota Carina 1.8 Ltr, 4S-FE ST180R, 8/90-9/93 1990-1993
Toyota Carina 1.8 Ltr, 4S-FI ST180R, 5/90-7/90 1990-1990
Toyota Carina 1.8 Ltr, 4S-FI ST180R, 9/89-5/90 1989-1990
Toyota Carina 1.8 Ltr, 4S-FE ST181R, 8/90-9/93 1990-1993
Toyota Carina 1.8 Ltr, 4S-FI ST181R, 5/90-7/90 1990-1990
Toyota Carina 1.8 Ltr, 4S-FI ST181R, 9/89-5/90 1989-1990
Toyota Carina 2.0 Ltr Diesel, 2C, 54kw CT170R, 5/90-7/92 1990-1992
Toyota Carina 2.0 Ltr Diesel, 2C, 54kw CT170R, 5/88-5/90 1988-1990
Toyota Carina 2.0 Ltr Diesel, 2C, 54kw CT176R, 5/90-11/92 1990-1992
Toyota Carina 2.0 Ltr Diesel, 2C, 54kw CT176R, 5/88-5/90 1988-1990
Toyota Carina 2.0 Ltr Diesel, 2C, 54kw CT190R, 8/92-7/96 1992-1996
Toyota Carina 2.0 Tdi, 2C-T, 65kw CT210R, 8/96-7/98 1996-1998
Toyota Carina 2.0 Ltr, 3S-GELU, 118kw SR162R, 5 Speed, 8/85-8/89 1985-1989
Toyota Carina 2.0 Ltr, 3S-FE, 92kw ST182R, 5/90-7/91 1990-1991
Toyota Carina 2.0 Ltr, 3S-FE, 92kw ST182R, 9/89-5/90 1989-1990
Toyota Carina 2.0 Ltr Twin Cam, 3S-GE, 123kw ST182R, 5/90-9/93 1990-1993
Toyota Carina 2.0 Ltr Twin Cam, 3S-GE, 123kw ST182R, 9/89-5/90 1989-1990
Toyota Carina 2.0 Ltr, 3S-FE, 104kw ST182R, 8/91-9/93 1991-1993
Toyota Carina 2.0 Ltr, 3S-FE, 92kw ST183R, 5/90-7/91 1990-1991
Toyota Carina 2.0 Ltr, 3S-FE, 92kw ST183R, 9/89-5/90 1989-1990
Toyota Carina 2.0 Ltr Twin Cam, 3S-GE, 123kw ST183R, 5/90-9/93 1990-1993
Toyota Carina 2.0 Ltr Twin Cam, 3S-GE, 123kw ST183R, 9/89-5/90 1989-1990
Toyota Carina 2.0 Ltr, 3S-FE, 104kw ST183R, 8/91-9/93 1991-1993
Toyota Carina 2.0 Ltr, 3S-FE, 104kw ST202R, 5 Speed, 10/93-12/98 1993-1998
Toyota Carina 2.0 Ltr, 3S-GE, 134kw ST202R, 5 Speed, 10/93-12/98, Normal Suspension 1993-1998
Toyota Carina 2.0 Ltr, 3S-FE, 104kw ST203R, 5 Speed, 10/93-12/98 1993-1998
Toyota Carina 2.2 Tdi, 3C-TE, 70kw CT211R, 5 Speed, 8/98-11/01 1998-2001
Toyota Celica 1.8 Ltr, 1S-iLU ST160R, 8/85-5/88 1985-1988
Toyota Celica 1.8 Ltr, 4S-FI ST163R, 5/88-8/89 1988-1989
Toyota Celica 2.0 Ltr, 3S-FE, 96kw ST182R, 10/89-7/90 1989-1990
Toyota Celica 2.0 Ltr, 3S-GE, 123kw ST182R, 10/89-9/93 1989-1993
Toyota Celica 2.0 Ltr, 3S-GE, 123kw ST183C, 5 Speed, 8/90-9/93 1990-1993
Toyota Celica 2.0 Ltr, 3S-FE, 92kw ST183R, 10/89-4/90 1989-1990
Toyota Celica 2.0 Ltr, 3S-FE, 104kw ST183R, 8/90-9/93 1990-1993
Toyota Celica 2.0 Ltr, 3S-GE, 123kw ST183R, 10/89-4/90 1989-1990
Toyota Celica 2.0 Ltr, 3S-GE, 123kw ST183R, 5 Speed, 5/90-9/93 1990-1993
Toyota Celica 2.0 Ltr, 3S-FE, 92kw ST183R, 5 Speed, 5/90-7/90 1990-1990 ORANGE
Generic image shown, you will be sent the correct product that you have purchased.
